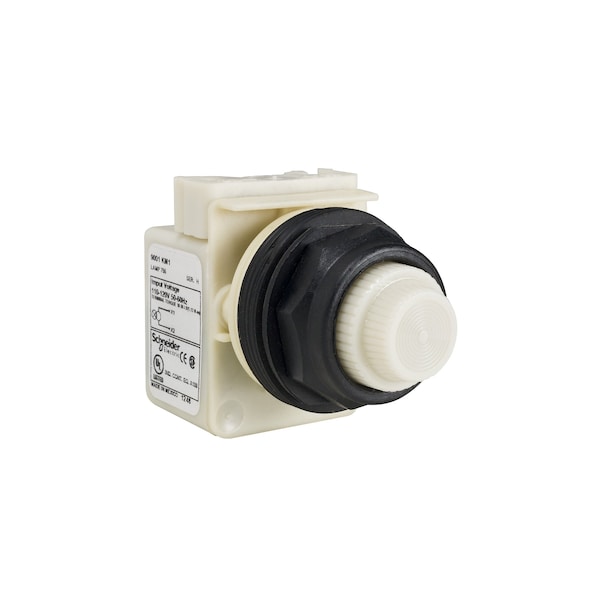

Botón pulsador de 30mm, Tipo SK, luz piloto de prueba, módulo de luz LED blanco de 120VCA/VCC, lente blanco con domo, NEMA 4, 4X.
| Item | PILOT LIGHT 120V 30MM TYPE SK +OTPIONS |
|---|---|
| Lens Material | Polycarbonate |
| Lens Type | plastic |
| Size | 30 mm |
| Standards | EN/IEC 60947-1, JIS C 852, EN/IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, UL 508, EN/IEC 60947-5-4, JIS C8201-1 |
| Height | 70 mm |
| Width | 54 mm |
| Ambient Air Temperature For Operation | -25-70°C |
| Bezel Material | plastic |
| Range of Product | Harmony 9001SK |
| Protective Treatment | TC |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV EN/IEC 60947-1 |
| Device Short Name | 9001SK |
| Contacts Type And Composition | 1 C/O |
| [Ith] Conventional Free Air Thermal Current | 10A |
| Shape of Signaling Unit Head | round |
| Light Block Supply | direct 120 V AC/DC |
| Shape of Screw Head | cross slotted |
| Short-Circuit Protection | 10 A cartridge fuse EN/IEC 60947-5-1 |
| Nema Degree of Protection | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Operating Mode | push-to-test |
| [Ui] Rated Insulation Voltage | 250 V 2)EN/IEC 60947-1 |
| Bulb Base | BA 9s |
| Light Source | LED |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| [Us] Rated Supply Voltage | 120 V |
| Operating Position | Any position |
| Ambient Air Temperature For Storage | -40-70°C |
| Mounting Diameter | 30 mm |
| Cap/Operator or Lens Colour | white |
| Connections - Terminals | screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 |
| Light Source Colour | white |
| Ip Degree of Protection | IP66 IEC 60529 |
| Electrical Shock Protection Class | Class II IEC 61140 |
| Product or Component Type | push-to-test pilot light |
| Tightening Torque | 0.8-0.8 N.m EN/IEC 60947-1 |
| Package Quantity | 1 |
