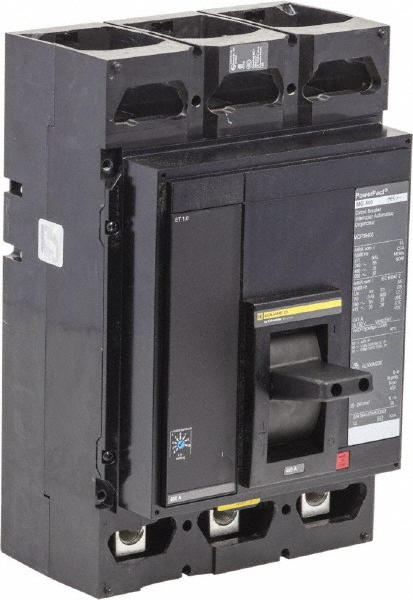

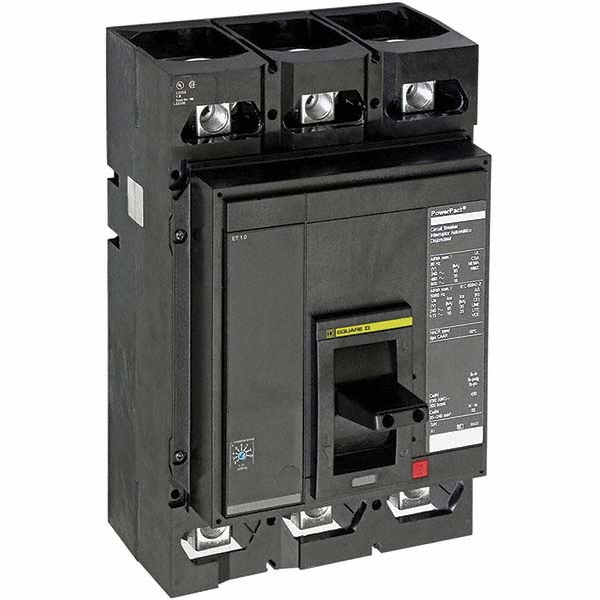

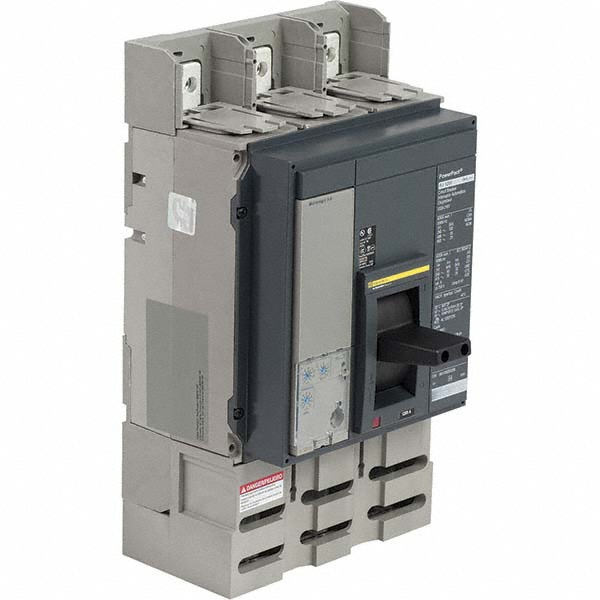

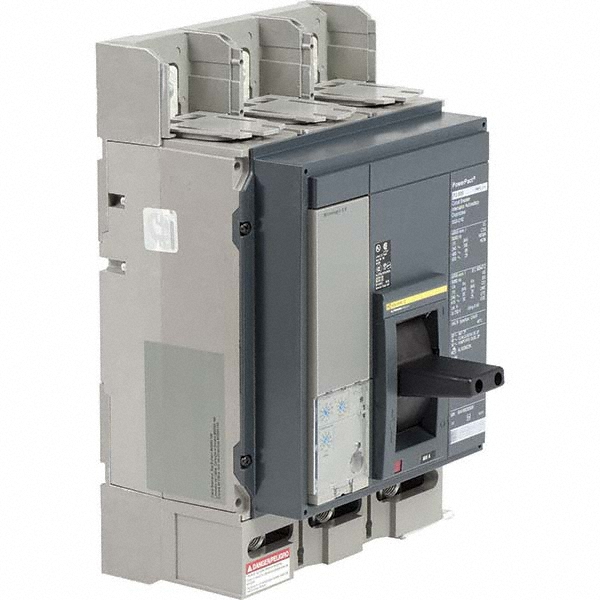

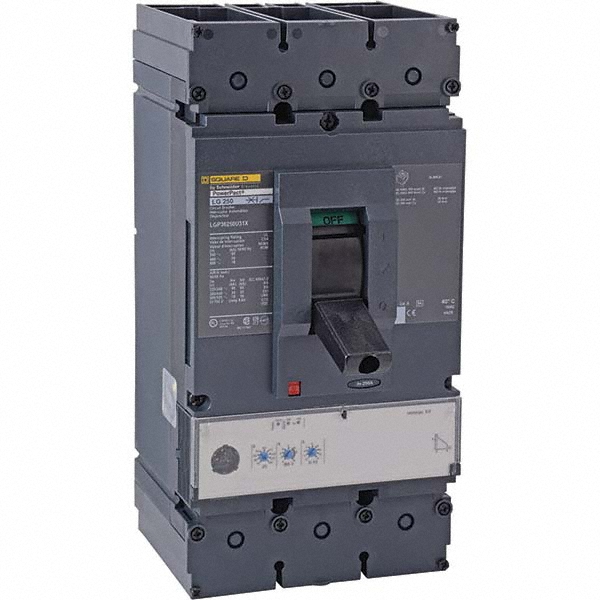

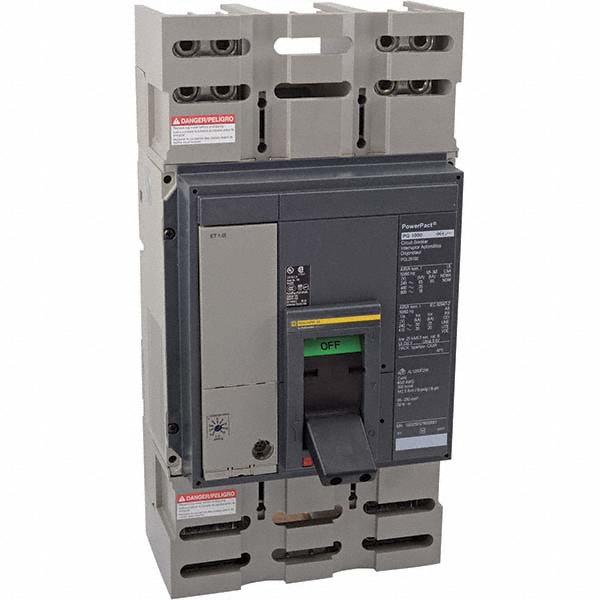

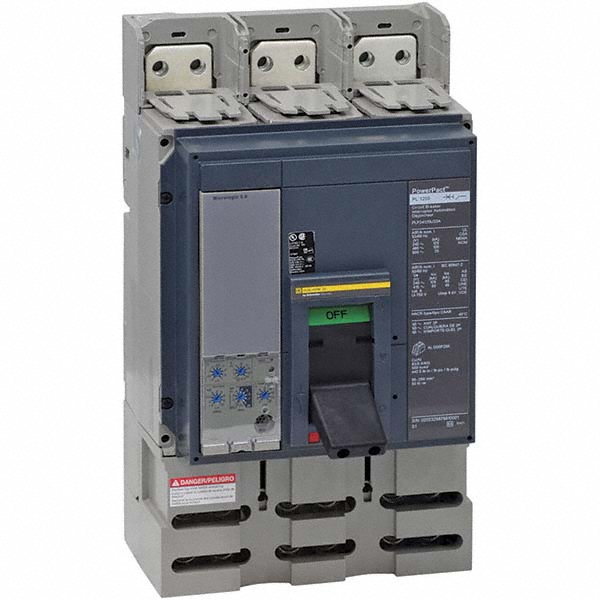

Electronic Trip, 18 kA at 600 VAC Breaking Capacity, 3/0 (Aluminum), 3/0 (Copper) AWG, 8.05 Inch Deep x 12.86 Inch High x 8.27 Inch Wide
| Circuit Breaker Type | Molded Case |
|---|---|
| Amperage | 400 |
| Voltage | 600V AC |
| Number Of Poles | 3 |
| Tripping Mechanism | Electronic |
| Terminal Connection Type | Lug |
| Mount Type | Unit |
| Overall Width (Decimal Inch - 4 Decimals) | 8.27 |
| Overall Height (Decimal Inch) | 12.8600 |
| Reset Actuator Type | Toggle Switch |
| Standards | UL Listed; CCC; Federal Specification W-C 375 b/Gen; HACR; CSA Certified |
| UNSPSC Code | 39121603 |
| MSC Number | MSC# 56768450 |
