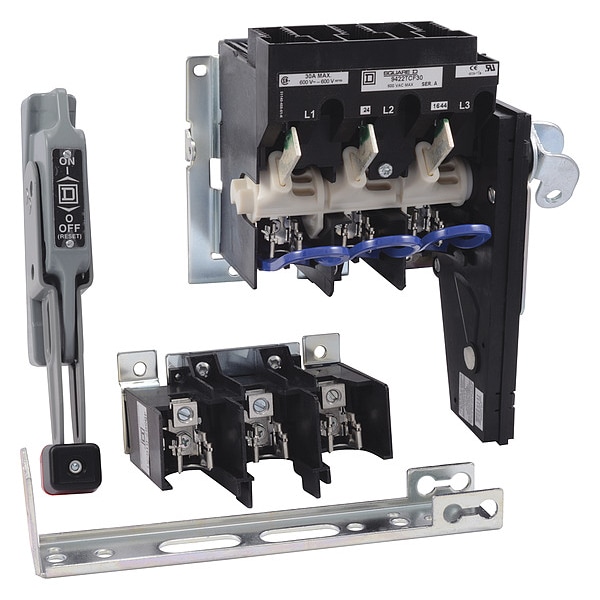

Interruptor de desconexión de fusible de 60 amperios y 600VAC.
| Item | Switch |
|---|---|
| Voltage | 600VAC |
| Fusible / Nonfusible | Fusible |
| Fuse Type | H, J || R, K |
| Associated Fuse Rating | 60 A 600 V |
| Product Certifications | UL Recognized || CSA |
| Line Rated Current | 60 A |
| Product Mounting | flange rod variable depth |
| Maximum Horse Power Rating | 15 hp 200 V AC || 15 hp 230 V AC || 30 hp 460 V AC || 50 hp 575 V AC || 10 hp 250 V DC |
| Provided Equipment | 6 in handle included NEMA 1/3/3R/4 enclosures sheet steel |
| Disconnector Device Type | fusible disconnect switch |
| Product Or Component Type | Disconnect Switch |
| Horsepower Rating | 15 hp 200 V AC; 15 hp 230 V AC; 30 hp 460 V AC; 50 hp 575 V AC; 10 hp 250 V DC |
| Certifications | UL Recognized; CSA |
| Package Quantity | 1 |
