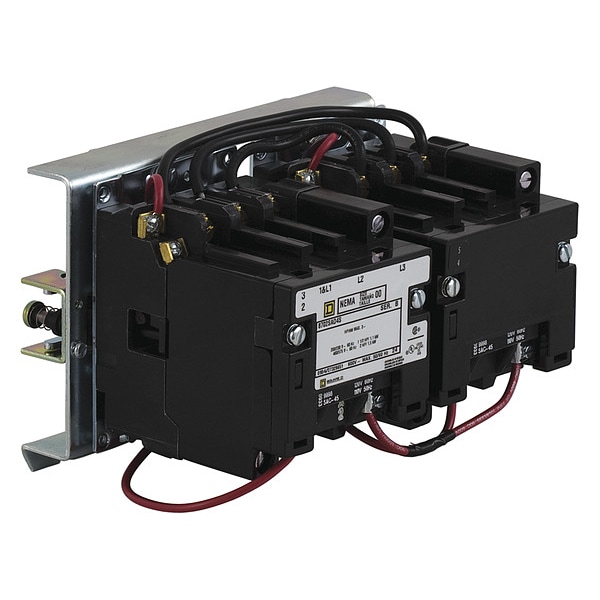

Contactador Reversible de 600VAC, 3 Polos, 27 Amperios, NEMA 1
| Item | Contactor |
|---|---|
| Full Load Amps | 27 |
| Action | Reversing |
| Number of Poles | 3 |
| Coil Volts | 600VAC |
| Height | 127 mm |
| Width | 181.1 mm |
| Depth | 134.87 mm |
| NEMA Size | 1 |
| Product Certifications | UL Listed || CSA |
| Phase | 3 phase |
| [Ue] Rated Operational Voltage | 600 V AC |
| Electrical Connection | Screw Clamp Terminals |
| Condition Of Use | horizontal |
| Local Signalling | no indicator |
| Rated Power In Hp | 7.5 HP 200 V AC || 7.5 HP 230 V AC || 10 HP 460 V AC || 10 HP 575 V AC |
| Line Rated Current | 27 A |
| Contactor Application | reversing |
| Product Or Component Type | Contactor |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz || 120 V AC 60 Hz |
| Control Type | No control units |
| Poles Description | 3P |
| Nema Degree Of Protection | not rated (open device) |
| Control Circuit | Separate control circuit |
| Wiring Mode | 3 wires |
| Coil Voltage | 110 V AC 50 Hz; 120 V AC 60 Hz |
| Horsepower Rating | 7.5 HP 200 V AC; 7.5 HP 230 V AC; 10 HP 460 V AC; 10 HP 575 V AC |
| Certifications | UL Listed |
| Short Circuit Current Rating | Circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC; Fuse J 60 A maximum, SCCR: 100 kA at 600 V AC; Fuse T 60 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC |
| Package Quantity | 1 |
