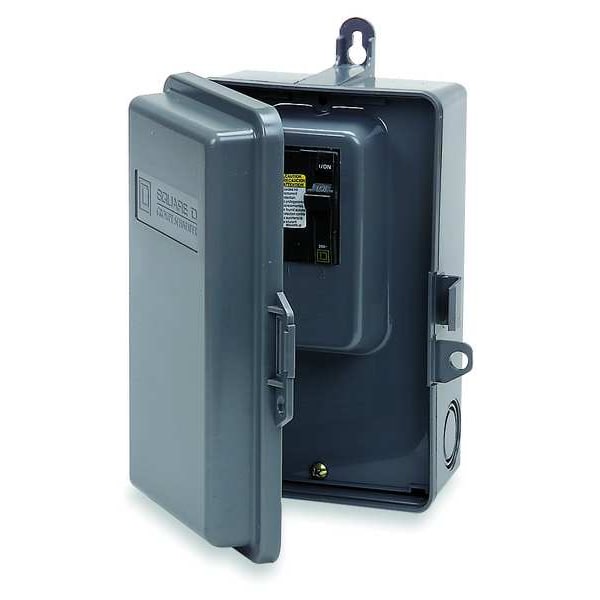

Interruptor de Desconexión de Aire Acondicionado de Simple Tiro, 240V AC, NEMA 3R
| Item | Air Conditioning Single Throw Disconnect Switch |
|---|---|
| Duty | General |
| Amps | 60 |
| Voltage | 240 V AC |
| Phase | 1 |
| NEMA Enclosure Type | 3R |
| IP Rating | 54 |
| Number of Wires | 2 |
| Number of Poles | 2 |
| Contact Form | 2PST |
| Amps AC | 60 A |
| Metallic / Non-Metallic | Non-Metallic |
| Material of Construction | Polycarbonate |
| Depth | 3-29/32 in |
| Width | 6-1/2 in |
| Short Circuit Protection | Circuit Breaker |
| Standards | UL listed |
| Receptacle Type | No Receptacle Included |
| Max. HP @ 240V | 10 HP |
| Height | 8.8 in |
| For Use With | Not Applicable |
| AC Voltage Rating | 240V AC |
| Product Certifications | UL Listed |
| Ambient Air Temperature For Operation | 40°C |
| Product Or Component Type | enclosed molded case switch || weatherproof enclosure |
| Type Of Installation | enclosed outdoor |
| Line Rated Current | 60 A |
| Package Quantity | 1 |
