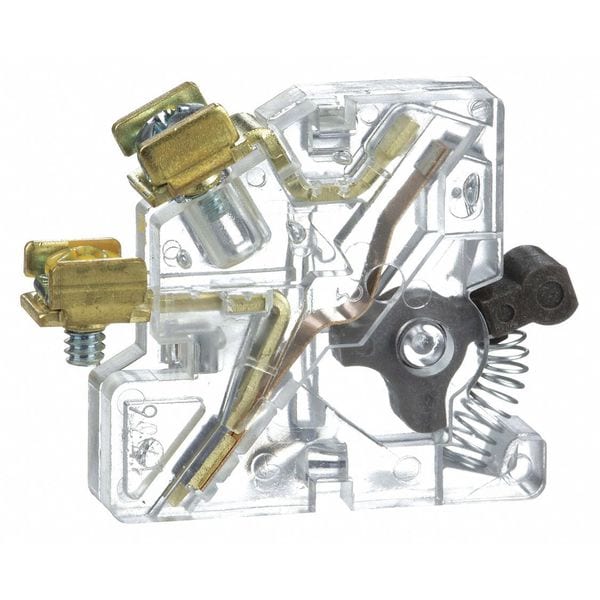

Contacto auxiliar, 3A, 1NA
| Item | Auxiliary Contact |
|---|---|
| Number of NO Aux. Contacts | 1 |
| Number of NC Aux. Contacts | 0 |
| Amps | 3 A |
| Mounting | Screw |
| For Use With | Square D NEMA Size 00 thru 2 |
| Number of Contacts | 1 |
| Starter Size | 00-2 |
| Voltage | 600V AC |
| Standards | CSA Approved, UL Recognized and Listed |
| NEMA Size | 0, 0, 1, 2 |
| Maximum Voltage Rating | 600 V AC |
| Current AC | 5 A |
| Number of Normally Open Contacts | 1 |
| Terminal Connection Type | Screw Terminals |
| Compatible with Series | Type M Integral Horsepower Starters, Type S Contactors, Type S Motor Starters, Type T Integral Horsepower Starters |
| Number of Normally Closed Contacts | 0 |
| Package Quantity | 1 |
