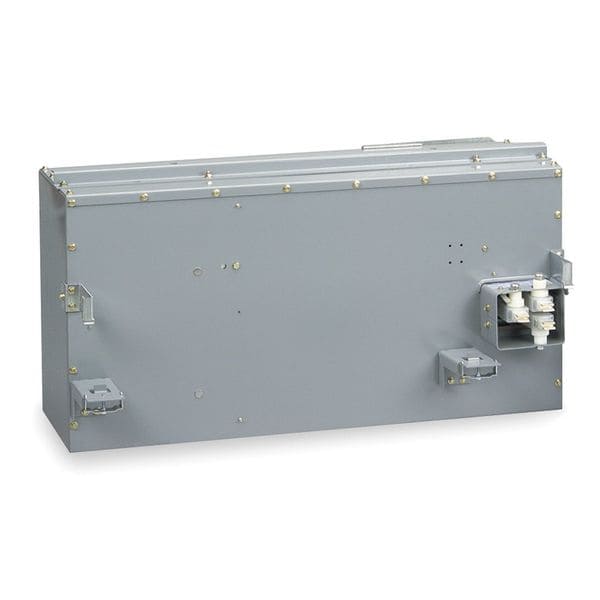

Busway, 125A, 277/480/600V AC, HD, 3 Phase, 4 Wire With Ground
| Item | Busway |
|---|---|
| Amps | 125A |
| Voltage | 277/480/600V AC |
| Number of Poles | 3 |
| Phase/Wire | 3 Phase, 4 Wire With Ground |
| Breaker Type | HD |
| Fusible | No |
| For Use With | Square D I-Line II Busway |
| Enclosure Rating | NEMA 1 |
| Height | 20-21/64 in |
| Width | 8-1/2 in |
| Depth | 8 in |
| Standards | CSA Certified, UL Listed |
| Breaking Capacity Code | D |
| Disconnector Device Type | associated circuit breaker 125 A 25 kA 240 V || associated circuit breaker 125 A 18 kA 480 V || associated circuit breaker 125 A 14 kA 600 V |
| Level Or Class | class 5600 |
| Product Certifications | CSA || UL |
| [Ue] Rated Operational Voltage | 600 V AC 50/60 Hz || 277/480 V AC 50/60 Hz |
| Fixing Mode | plug-in |
| Rated Operational Voltage | 600 V AC 50/60 Hz; 277/480 V AC 50/60 Hz |
| Module Type | H-Frame |
| Package Quantity | 1 |
