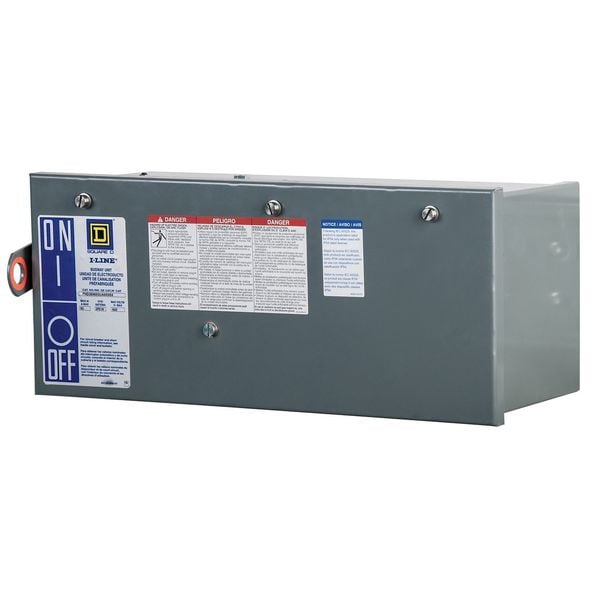

Busway Plug In Unit, 100A, 600V AC, H, J, 3 Phase, 4 Wire With Ground
| Item | Busway Plug In Unit |
|---|---|
| Amps | 100A |
| Voltage | 600V AC |
| Number of Poles | 3 |
| Phase/Wire | 3 Phase, 4 Wire With Ground |
| Breaker Type | H, J |
| NEMA Rating | 1 |
| Fusible | No |
| For Use With | Square D I-Line and I-Line II Busway |
| Enclosure Rating | NEMA 1 |
| Height | 8-1/2 in |
| Width | 21-11/16 in |
| Depth | 9-1/8 in |
| Standards | CSA C22.2 No 27, UL Listed file E22182 |
| Trip Unit Technology | electronic, ammeter, MicroLogic 6.2 A, LSIG |
| [Ue] Rated Operational Voltage | 600 V AC |
| Mounting Mode | plug-in |
| Awg Gauge | AWG 8...AWG 3/0 1 phase and neutral || AWG 6...AWG 2/0 1 ground |
| [Ics] Rated Service Short-Circuit Breaking Capacity | 0.8 |
| Line Rated Current | 100 to 100 A |
| Breaking Capacity | 100 kA 240 V AC || 65 kA 480 V AC || 25 kA 600 V AC |
| Protection Type | circuit breaker |
| Product Certifications | CSA C22.2, No 27 || UL listed file E22182 |
| Interrupt Rating | 100 kA 240 V AC; 65 kA 480 V AC; 25 kA 600 V AC |
| Range of Product | I-Line |
| Package Quantity | 1 |
