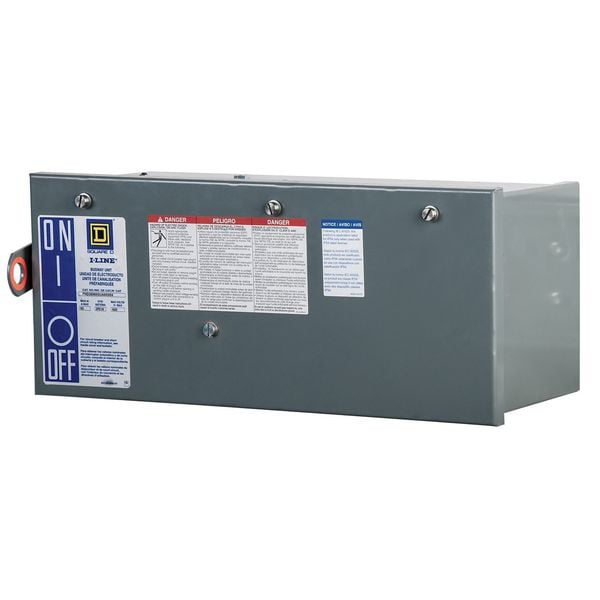

Busway Plug In Unit, 250A, 600V AC, H, J, 3 Phase, 4 Wire
| Item | Busway Plug In Unit |
|---|---|
| Amps | 250A |
| Voltage | 600V AC |
| Number of Poles | 3 |
| Phase/Wire | 3 Phase, 4 Wire |
| Breaker Type | H, J |
| NEMA Rating | 1 |
| Fusible | No |
| For Use With | Square D I-Line and I-Line II Busway |
| Enclosure Rating | NEMA 1 |
| Height | 8-1/2 in |
| Width | 21-11/16 in |
| Depth | 9-1/8 in |
| Standards | CSA C22.2 No 27, UL Listed file E22182 |
| Circuit Breaker Type | J-frame |
| [Ue] Rated Operational Voltage | 600 V AC |
| Range of Product | I-Line |
| Protection Type | circuit breaker |
| Breaking Capacity | 100 kA 240 V AC, 65 kA 480 V AC, 25 kA 600 V AC |
| Awg Gauge | AWG 6...AWG 2/0 1 ground, AWG 3/0...350 kcmil 1 phase and neutral |
| Wiring Configuration | 4-wire (integral ground bus) |
| Mounting Mode | plug-in |
| Line Rated Current | 250 to 250 A |
| Trip Unit Technology | electronic, standard, MicroLogic 3.2 S, LSI |
| Package Quantity | 1 |
