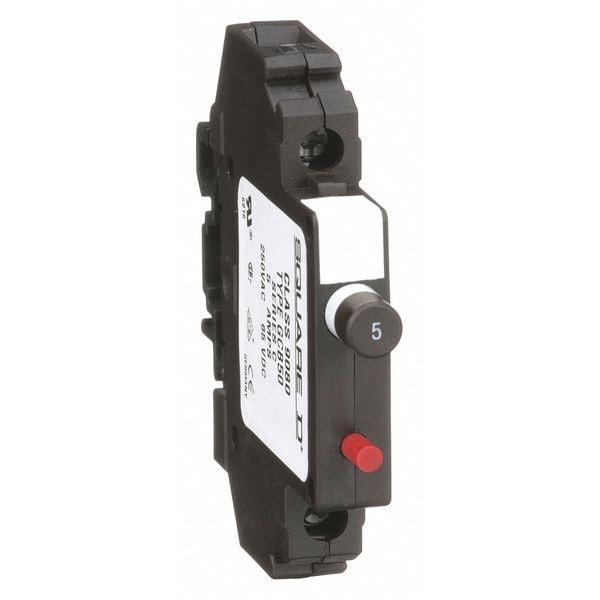

Circuit Breaker, 9080GCB Series, 5A, 1 Pole, 250V AC
| Item | Circuit Breaker |
|---|---|
| Series | 9080GCB |
| Amps | 5A |
| Number of Poles | 1 |
| AC Voltage Rating | 250V AC |
| Circuit Breaker Type | Over-Current |
| Circuit Breaker Mounting Style | DIN Rail |
| Trip Type | Thermal Magnetic, Trip Free |
| Instantaneous Trip | Instantaneous |
| Terminal Connection | Box Lug |
| Width | 3.15 in |
| Depth | 1/2 in |
| Height | 3.45 in |
| DC Voltage Rating | 65V DC |
| For Use With | 35mm/GH |
| Min. Wire Size | 16 AWG |
| Pieces per Foot | 24 |
| Max. Wire Size | 10 AWG |
| Standards | UL 1077CSA C22.2 No 235DIN 57470 |
| Application | Industrial Application |
| Features | Mercury Free |
| Number of Tiers | 1 |
| Current | 5 A |
| Overall Length | 3.11 in |
| For Conductor Material | Copper |
| Connection Type | Track Mount |
| Overall Depth | 3.15 in |
| For Minimum Wire Size | 16 AWG |
| Housing Color | Black |
| Maximum Voltage | 250 V AC |
| For Maximum Wire Size | 10 AWG |
| Circuit Protection Type | Circuit Breaker |
| Overall Width | 1/2 in |
| Voltage | 250V AC/65V DC |
| Package Quantity | 1 |
