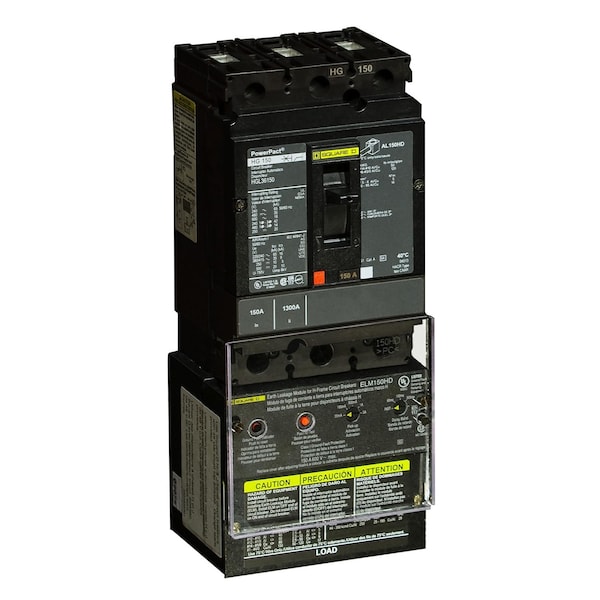

Accesorio para interruptor de circuito, PowerPacT H, módulo de fuga a tierra, de 15 a 150 amperios.
| Item | Circuit Breaker Earth Leakage Module |
|---|---|
| Electrical Connection To Mcb | plug in |
| Product Certifications | CSA || UL |
| Earth-Leakage Protection Time Delay | 500 ms || instantaneous |
| Line Rated Current | 15-150 A |
| Circuit Breaker Type | HJ || HG || HL || HD |
| Tightening Torque | 9-9 N.m 2.5-50 mm² (AWG 14 to AWG 1/0) || 4.5-4.5 N.m 2.5-50 mm² (AWG 12 to AWG 10) || 17-17 N.m 50-120 mm² (AWG 4 to AWG 1) || 9-9 N.m 2.5-50 mm² (AWG 12 to AWG 1/0) |
| Network Type | AC |
| Local Signalling | Trip indicator |
| [Ue] Rated Operational Voltage | 240 to 600 V |
| Earth-Leakage Sensitivity | 1000 mA || 30 mA || 3000 mA || 300 mA || 100 mA |
| Product Or Component Type | earth leakage add-on block |
| Range of Product | PowerPact |
| Package Quantity | 1 |
