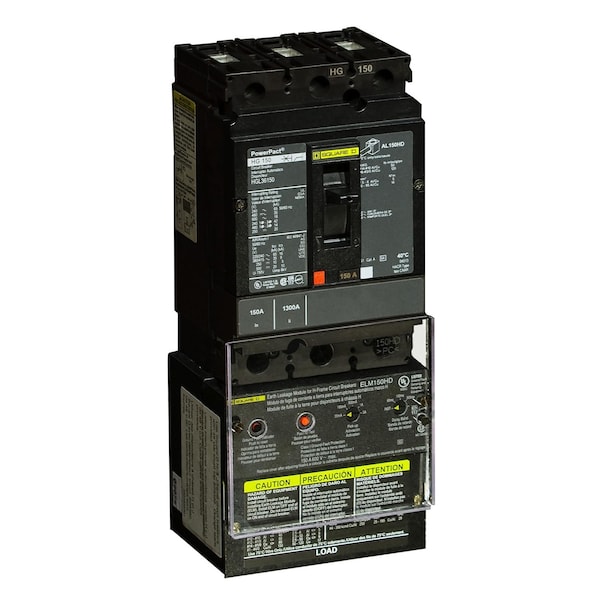

Accesorio para interruptor de circuito, PowerPacT J, módulo de fuga a tierra, de 150 a 250 amperios.
| Item | Circuit Breaker Earth Leakage Module |
|---|---|
| Standards | UL, CSA |
| Line Rated Current | 150-250 A |
| [Ue] Rated Operational Voltage | 240...600 V |
| Local Signalling | Trip indicator |
| Electrical Connection To Mcb | plug in |
| Earth-Leakage Protection Time Delay | instantaneous, 500 ms |
| Product or Component Type | earth leakage add-on block |
| Range of Product | PowerPact |
| Earth-Leakage Sensitivity | 30 mA, 3000 mA, 1000 mA, 300 mA, 100 mA |
| Network Type | AC |
| Circuit Breaker Type | JD, JG, JJ, JL |
| Tightening Torque | 25.8-25.8 N.m 25-185 mm² (AWG 4...350 kcmil) |
| Product Certifications | UL || CSA |
| Package Quantity | 1 |
