Circuit Breaker Enclosure, 2 Spaces, 100 A, Surface Mount, Outdoor Use, NEMA 3R, Steel, Enamel, Gray

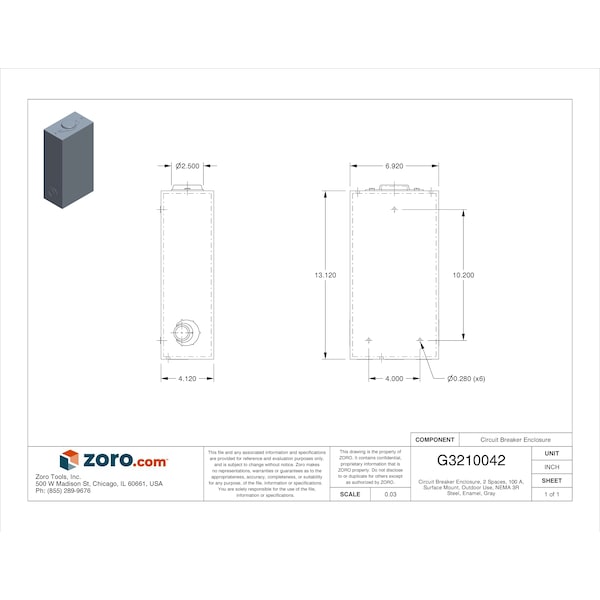

| CAD Available | Yes |
|---|---|
| Item | Circuit Breaker Enclosure |
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 2 |
| Amps | 100A |
| Phase | 1 |
| Short Circuit Current Rating | 22kA |
| Height | 13.19 in |
| Width | 6.93 in |
| Depth | 4.12 in |
| Series | QO |
| Included Enclosure Cover | Surface Cover |
| Recommended Surface Cover | Included |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 3R |
| Bus Material | Copper |
| Color | Gray |
| Material | Steel |
| NEMA Rating | 3R |
| For Use With | Square D QO Circuit Breakers |
| Mounting Style | Surface |
| Finish | Enamel |
| Length | 13.18 in |
| Exterior Width | 6.93 in |
| Conduit Provision | 1/2, 3/4, 1, 1 1/4, 1 1/2, 2 |
| Max. Operating Temp. | 104 deg F |
| Recommended Service Ground Kit | 2DH17 |
| Min. Operating Temp. | 23 deg F |
| Cover Closure Method | Latch |
| Location | Outdoor |
| Exterior Height | 13.19 in |
| Cover Attachment Style | Top Hinge |
| Exterior Depth | 4.12 in |
| Wiring Configuration | 3-wire |
| Device Composition | grounding bar |
| Number Of Circuits | 2 |
| Package Quantity | 1 |
