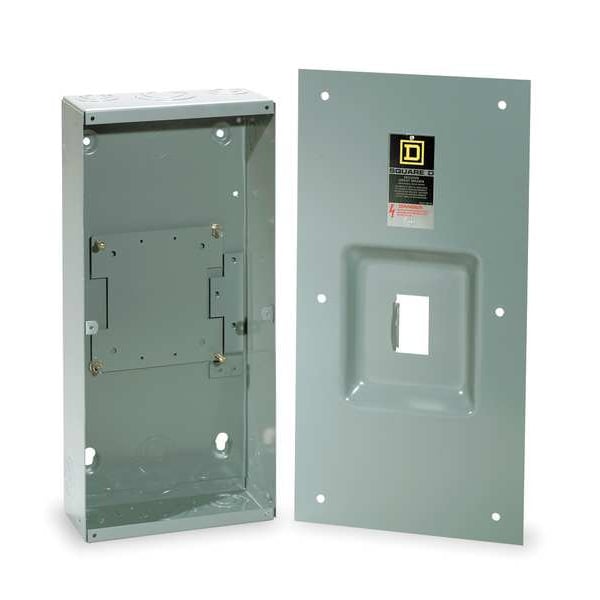

Circuit Breaker Enclosure, Q22, 2 Spaces, 200A, 240V
| Item | Circuit Breaker Enclosure |
|---|---|
| Number of Spaces | 2 |
| Amps | 200A |
| Voltage | 240V |
| Height | 23.15 in |
| Width | 7.64 in |
| Depth | 4-1/4 in |
| Series | Q22 |
| Included Enclosure Cover | Surface Cover |
| Recommended Surface Cover | Included |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Color | Gray |
| Finish | Paint |
| Mounting Style | Surface |
| Material | Steel |
| For Use With | Square D QBL, QDL, QGL and QJL Circuit Breakers |
| Length | 23.13 in |
| NEMA Rating | 1 |
| Exterior Depth | 4-1/4 in |
| Cover Closure Method | Lift Off |
| Recommended Service Ground Kit | 2DH17 |
| Location | Indoor |
| Cover Attachment Style | Screw On |
| Exterior Width | 7.64 in |
| Min. Operating Temp. | 23 deg F |
| Conduit Provision | 1/2, 3/4, 1, 1 1/4, 1 1/2, 2 |
| Max. Operating Temp. | 104 deg F |
| Exterior Height | 23.15 in |
| Product Certifications | CSA || UL |
| Poles Description | 2P |
| Package Quantity | 1 |
