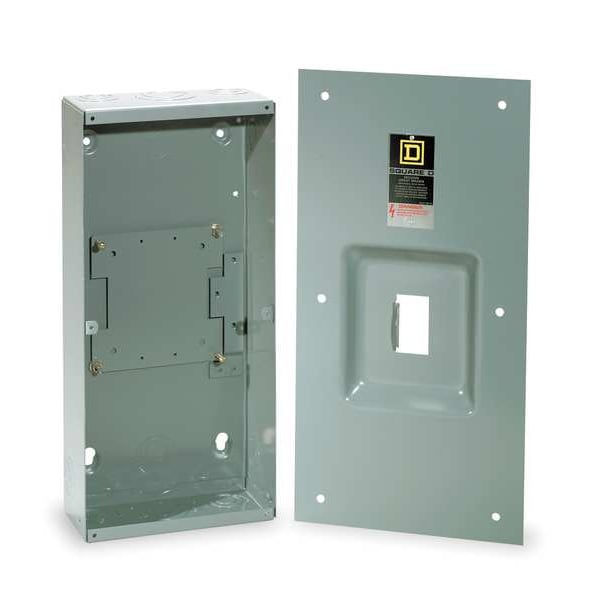

Circuit Breaker Enclosure, QJL, QDL, QBL, 3 Spaces, 225A
| Item | Circuit Breaker Enclosure |
|---|---|
| Number of Spaces | 3 |
| Amps | 225A |
| Height | 26.26 in |
| Width | 9.88 in |
| Depth | 4.76 in |
| Series | QJL, QDL, QBL |
| Included Enclosure Cover | Surface Cover |
| Recommended Surface Cover | Included |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| For Use With | Square D QBL, QDL, QGL and QJL Circuit Breakers |
| Finish | Paint |
| Mounting Style | Surface |
| Material | Steel |
| Color | Gray |
| Length | 26-1/4 in |
| NEMA Rating | 1 |
| Max. Operating Temp. | 104 deg F |
| Min. Operating Temp. | 23 deg F |
| Location | Indoor |
| Conduit Provision | 1, 1 1/4, 1 1/2, 2, 2 1/2, 3 |
| Cover Attachment Style | Screw On |
| Exterior Width | 9.88 in |
| Cover Closure Method | Lift Off |
| Exterior Height | 26.26 in |
| Recommended Service Ground Kit | 2DH17 |
| Exterior Depth | 4.76 in |
| Line Rated Current | 100-225 A |
| Product Certifications | UL |
| Poles Description | 3P || 2P |
| Package Quantity | 1 |
