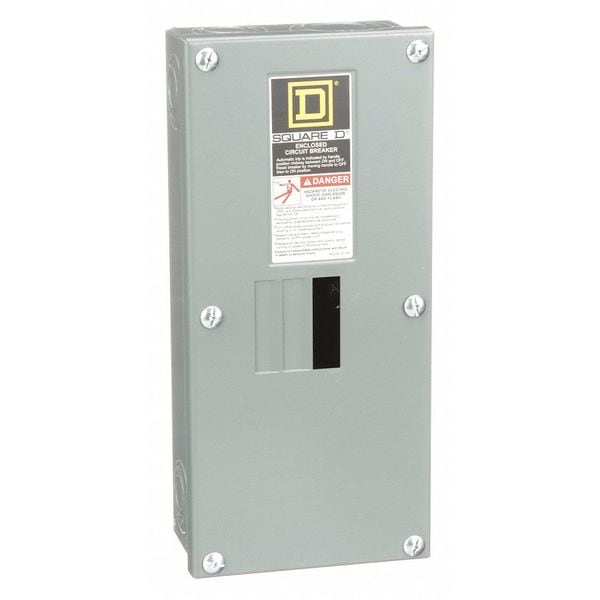

Circuit Breaker Enclosure, QO, 2 Spaces, 100A, Main Lug, 1 Phase
| Item | Circuit Breaker Enclosure |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 2 |
| Amps | 100A |
| Phase | 1 |
| Short Circuit Current Rating | 22kA |
| Height | 13.11 in |
| Width | 5.87 in |
| Depth | 3.38 in |
| Series | QO |
| Included Enclosure Cover | Surface Cover |
| Recommended Surface Cover | Included |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Copper |
| For Use With | Square D QO Circuit Breakers |
| Color | Gray |
| Length | 13.12 in |
| Material | Steel |
| Finish | Enamel |
| NEMA Rating | 1 |
| Mounting Style | Surface |
| Cover Closure Method | Lift Off |
| Location | Indoor |
| Exterior Width | 5.87 in |
| Cover Attachment Style | Screw On |
| Recommended Service Ground Kit | 2DH17 |
| Exterior Depth | 3.38 in |
| Exterior Height | 13.11 in |
| Min. Operating Temp. | 23 deg F |
| Conduit Provision | 1/2, 3/4, 1, 1 1/4, 1 1/2, 2 |
| Max. Operating Temp. | 104 deg F |
| Wiring Configuration | 3-wire |
| Number Of Circuits | 2 |
| Device Composition | grounding bar |
| Package Quantity | 1 |
