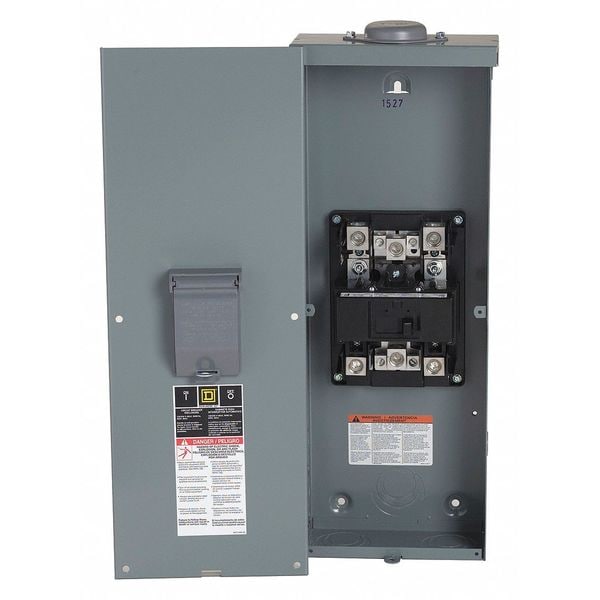

Circuit Breaker Enclosure, QO, 200A, Main Circuit Breaker, 1 Phase
| Item | Circuit Breaker Enclosure |
|---|---|
| Main Circuit Breaker or Main Lug | Main Circuit Breaker |
| Amps | 200A |
| Phase | 1 |
| Short Circuit Current Rating | 22kA |
| Height | 624 mm |
| Width | 220 mm |
| Depth | 104 mm |
| Series | QO |
| Enclosure NEMA Rating | NEMA 3R |
| Ambient Air Temperature For Operation | 40 DegC |
| Poles Description | 2P |
| Line Rated Current | 200 A |
| Device Short Name | QOM2 |
| Type Of Installation | outdoor |
| Product Certifications | UL Listed |
| Package Quantity | 1 |
