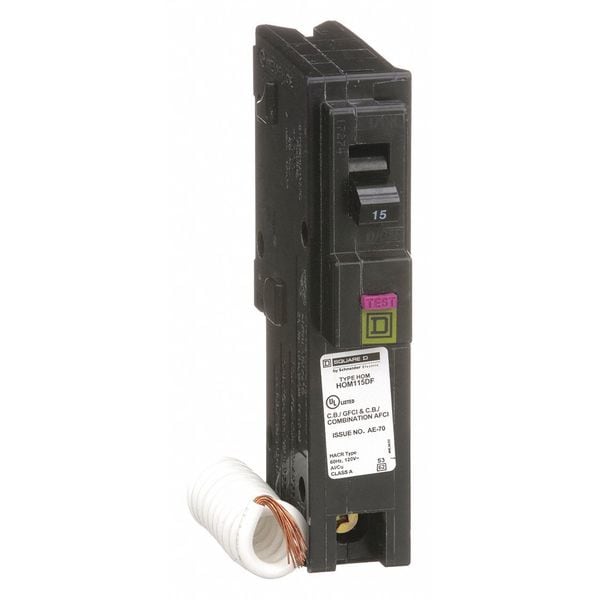

Circuit Breaker, HOM Series, 15A, 1 Pole, 120V AC, 10kA
| Item | Circuit Breaker |
|---|---|
| Series | HOM |
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | Combination Arc Fault and Ground Fault Circuit Interrupter |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA |
| Terminal Connection | Screw Clamp |
| Width | 1 in |
| Depth | 2.98 in |
| Height | 3.13 in |
| DC Voltage Rating | Not Rated |
| Application | HACR rated Applications |
| Min. Wire Size | 14 AWG (Cu/Al), 14 AWG (Cu) |
| Standards | UL Listed |
| Features | Mercury Free |
| Max. Wire Size | 8 AWG (Cu/Al), 10 AWG (Cu) |
| Package Quantity | 1 |
