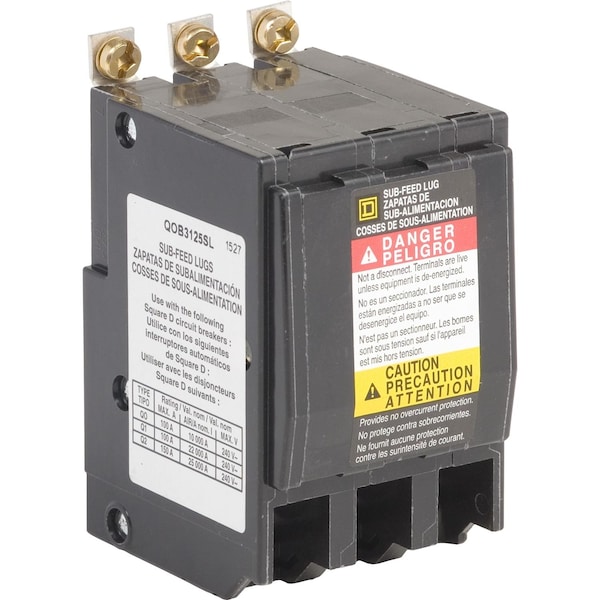

Circuit Breaker, QOB Series, 125A, 3 Pole, 240V AC
| Item | Circuit Breaker |
|---|---|
| Series | QOB |
| Amps | 125A |
| Number of Poles | 3 |
| AC Voltage Rating | 240V AC |
| Phase | 3 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Frame Size | 100A/QO |
| Width | 2.241 in |
| Depth | 2.31 in |
| Height | 3-1/2 in |
| DC Voltage Rating | Not Rated |
| Features | Mercury Free |
| Max. Wire Size | 2/0 AWG (Cu/Al) |
| Standards | CSA, cURus |
| Min. Wire Size | 12 AWG (Cu/Al) |
| Product Certifications | CSA, cURus |
| Rated Current | 125 A |
| Ambient Air Temperature For Operation | 23°F (-5°C); 104°F (40°C) |
| Wire Size | AWG 12 to AWG 2/0 copper or aluminium |
| Package Quantity | 1 |
