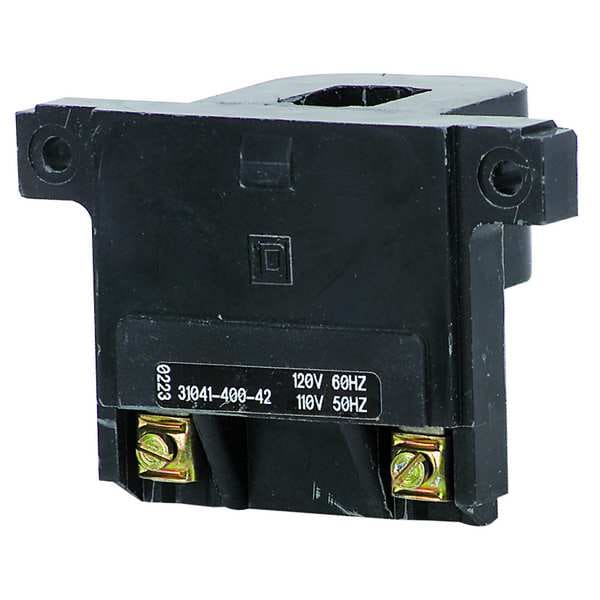

Bobina magnética de 120 VCA.
| Item | Replacement Coil |
|---|---|
| For Use With | SE, SF, and SV |
| Coil Volts | 120 V AC |
| VA Rating | 1,185 |
| Starter Size | 4, 3 |
| Hz | 60 |
| Contactor Type | NEMA |
| Depth | 62.7 mm |
| Height | 73 mm |
| Inrush Power In Va | 1185 VA || 1260 VA |
| [Ue] Rated Operational Voltage | 120 V AC 60 Hz || 110 V AC 50 Hz |
| Average Consumption | 89 VA || 85 VA |
| Nema Size | 4 |
| Product Or Component Type | coil |
| Accessory / Separate Part Destination | class 8502 type SF contactor || class 8903 type SV lighting contactor || class 8910 type SYD230 contactor |
| Width | 65 mm |
| Frequency | 50/60 Hz |
| Coil Power | 1,185 VA, 1,260 VA |
| Compatible with Series | 8502 Type SF Contactors, 8903 Type SV Lighting Contactors, 8910 Type SYD230 Contactors |
| Coil Voltage | 110/120V AC |
| Contactor Style | NEMA |
| Frame Size | Not Applicable |
| Package Quantity | 1 |
