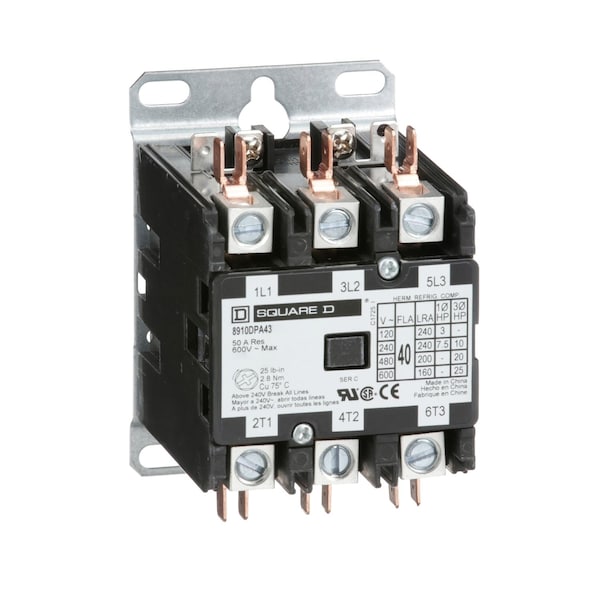

El contacto, Propósito Definido, 40A, 3 polos, 25HP a 575VAC, 3 fases, bobina de 380VAC 50Hz, abierta.
| Item | Contactor,Definite Purpose,40A,3 pole |
|---|---|
| Number of Poles | 3P |
| Full Load Amps-Inductive | 40 A |
| Standards | UL Recognized || CSA |
| Phase | 3 phase |
| [Ue] Rated Operational Voltage | 600 V AC |
| Locked Rotor Rated Current | 240 A 277 V AC, 200 A 460 V AC, 160 A 575 V AC |
| Electrical Connection | Box lugs, Quick connect terminals |
| Maximum Horse Power Rating | 3-3 hp 115 V AC, 1 phase, 7.5-7.5 hp 230 V AC, 1 phase, 10-10 hp 230 V AC, 3 phase, 20-20 hp 460 V AC, 3 phase, 25-25 hp 575 V AC, 3 phase |
| [Uc] Control Circuit Voltage | 380 V AC 50 Hz |
| Pole Contact Composition | 3 NO |
| Product or Component Type | Definite Purpose Contactor |
| Range of Product | DPA |
| Package Quantity | 1 |
