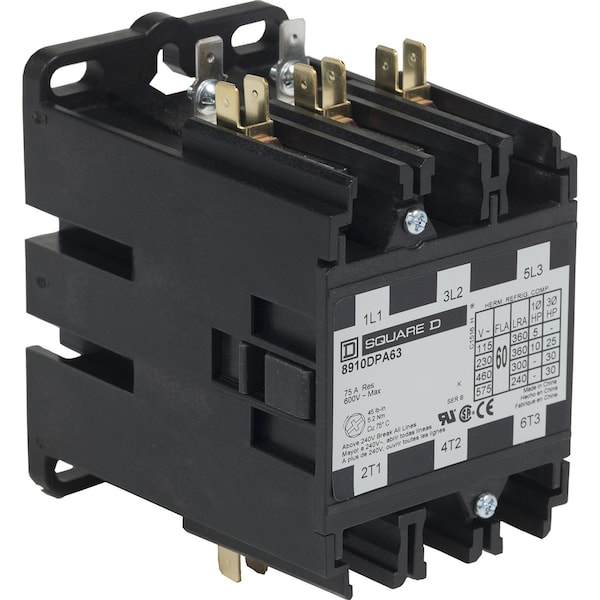

Contactador, Propósito Definido, 60A, 3 polos, 30 HP a 575 VAC, 3 fases, bobina de 110/120 VAC 50/60 Hz, abierto, Certificado por UL.
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Number of Poles | 3 |
| Full Load Amps | 60 |
| Full Load Amps-Inductive | 60 A |
| Coil Volts | 600VAC |
| Standards | UL Listed || CSA |
| Phase | 3 phase |
| Pole Contact Composition | 3 NO |
| Rated Operational Voltage | 600 V AC |
| Maximum Horse Power Rating | 5 hp 115 V AC, 1 phase; 10 hp 230 V AC, 1 phase; 30 hp 460 V AC, 3 phase; 30 hp 575 V AC, 3 phase; 25 hp 230 V AC, 3 phase |
| Locked Rotor Rated Current | 360 A 277 V AC; 300 A 460 V AC; 240 A 575 V AC |
| Control Circuit Voltage | 120 V AC 60 Hz; 110 V AC 50 Hz |
| Electrical Connection | Box lugs |
| Product Or Component Type | Definite Purpose Contactor |
| Product Certifications | UL Listed; CSA |
| Range of Product | DPA |
| [Uc] Control Circuit Voltage | 120 V AC 60 Hz, 110 V AC 50 Hz |
| Poles Description | 3P |
| Package Quantity | 1 |
