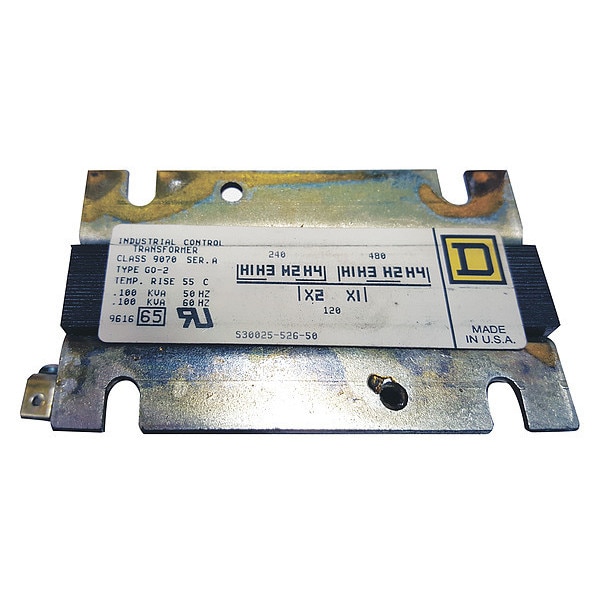

Control Transformer, 100 VA, Not Rated, 115°C, 120V AC, 240/480V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/480V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 60 |
| Enclosure Finish | No Finish |
| Enclosure Style - Transformer | Open |
| Width | 3.43 in |
| Protective Device | Primary and Secondary Fuse |
| VA Rating - Transformer | 100 VA |
| Fused | Yes |
| Manufacturers Warranty Length | 18 mo |
| Temp. Rise | 115 deg C |
| Includes | Fuse, Fuse Block Elevator Brackets, Mounting Hardware |
| Output Voltage - Transformer | 120V AC |
| Phase - Electrical | 1 |
| Height | 5.82 in |
| Depth | 5.38 in |
| Standards | RoHS/REACH |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Insulation Max. Temp. | 105 °C |
| Enclosure Type | Open |
| Winding Material - Transformer | Copper |
| Enclosure Rating | Not Rated |
| Secondary Connection | Screw clamp terminals |
| Primary Connection | Screw clamp terminals |
| Package Quantity | 1 |
