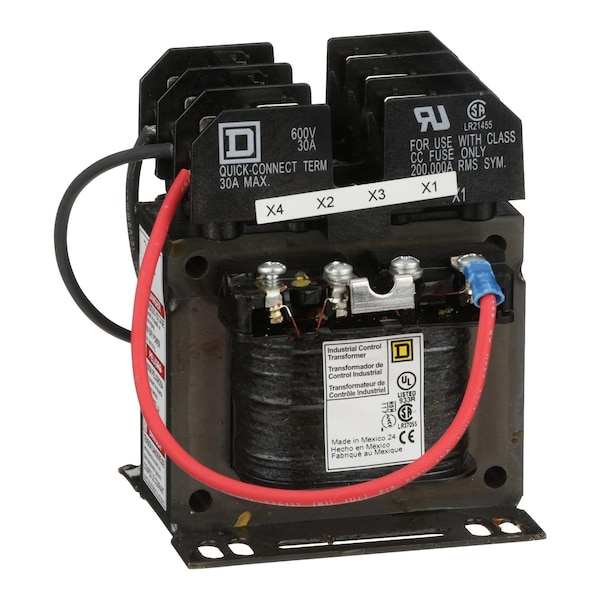

Control Transformer, 100 VA, Not Rated, 55°C, 110/220V AC, 120/240V AC, 115/230V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 230/460V AC, 240/480V AC, 220/440V AC |
| Hz - Electrical | 50/60 Hz |
| Manufacturers Warranty Length | 1 yr |
| Fused | Yes |
| Phase - Electrical | 1 |
| Depth | 3.34 in |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Standards | UL listed file E61239; CSA file LR37055 guide 184-N-90 |
| Temp. Rise | 55 deg C |
| Width | 3.38 in |
| VA Rating - Transformer | 100 VA |
| Output Voltage - Transformer | 110/220V AC, 120/240V AC, 115/230V AC |
| Includes | Top Mounted Fuse Block |
| Height | 4.18 in |
| Material | Copper: winding |
| Winding Material - Transformer | Copper |
| Enclosure Type | Open |
| Enclosure Rating | Not Rated |
| Insulation Max. Temp. | 105 °C |
| Secondary Connection | Screw clamp terminals |
| Primary Connection | Screw clamp terminals |
| Primary Voltage | 240 x 480 V 120/240 V, 230 x 460 V 115/230 V, 220 x 440 V 110/220 V |
| Insulation Temperature | 105°C |
| Rated Power In Va | 100 VA UL, 100 VA CSA, 100 VA NOM, 100 VA CE |
| Range of Product | TF |
| Nema Degree of Protection | not rated (open device) |
| Fuse Type | 0.41 x 1.50 in CC top |
| Product Compatibility | FSC1 |
| Package Quantity | 1 |
