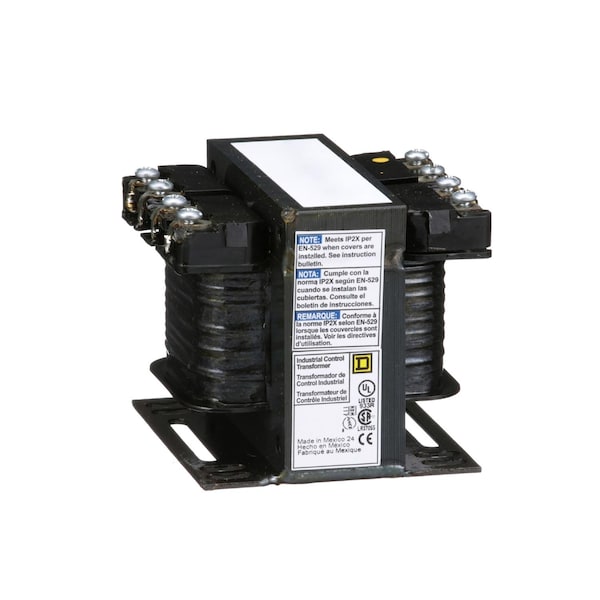

Control Transformer, 100 VA, Not Rated, 55°C, 115/230V AC, 380/400/415V
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 380/400/415V |
| Manufacturers Warranty Length | 1 yr |
| Phase - Electrical | 1 |
| Standards | CSA file LR37055 guide 184-N-90; UL listed file E61239 |
| Depth | 3.34 in |
| Width | 3.38 in |
| Height | 2.89 in |
| Temp. Rise | 55 deg C |
| VA Rating - Transformer | 100 VA |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Output Voltage - Transformer | 115/230V AC |
| Enclosure Type | Open |
| Primary Connection | Screw clamp terminals |
| Secondary Connection | Screw clamp terminals |
| Insulation Max. Temp. | 105 °C |
| Enclosure Rating | Not Rated |
| Winding Material - Transformer | Copper |
| Package Quantity | 1 |
