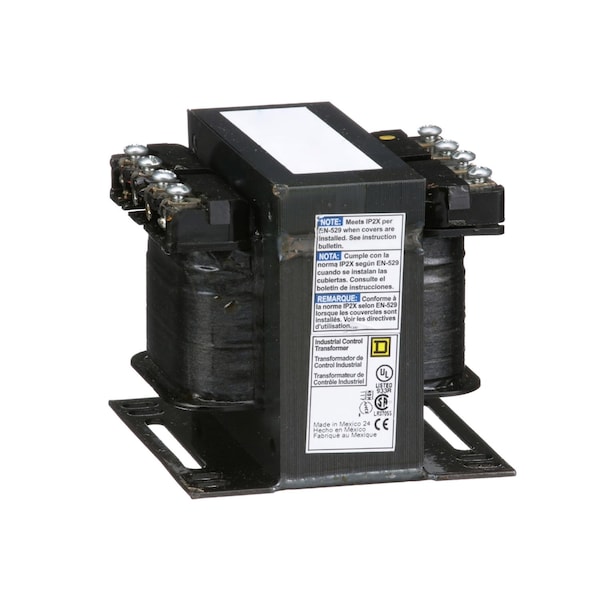

Control Transformer, 100 VA, Not Rated, 55°C, 120V, 240/480/600V
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/480/600V |
| Manufacturers Warranty Length | 1 yr |
| Phase - Electrical | 1 |
| Temp. Rise | 55 deg C |
| VA Rating - Transformer | 100 VA |
| Depth | 3.59 in |
| Output Voltage - Transformer | 120V |
| Standards | CSA file LR37055 guide 184-N-90; UL listed file E61239 |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Width | 3-3/4 in |
| Height | 3.2 in |
| Material | Copper: winding |
| Primary Connection | Screw clamp terminals |
| Enclosure Type | Open |
| Secondary Connection | Screw clamp terminals |
| Winding Material - Transformer | Copper |
| Enclosure Rating | Not Rated |
| Insulation Max. Temp. | 105 °C |
| Insulation Temperature | 221°F |
| Fingersafe Cover Compatibility | FSC1 |
| Primary To Secondary Voltage | 240/480/600 V 100/120 V; 230/460/575 V 95/115 V; 220/440/550 V 90/110 V |
| Package Quantity | 1 |
