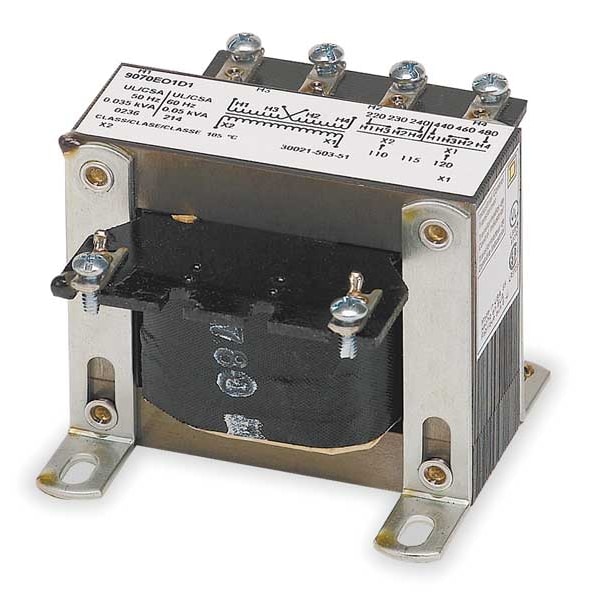

Control Transformer, 100 VA, Not Rated, 55°C, 120V AC, 240/480V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/480V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Enclosure Style - Transformer | Open |
| Fused | No |
| Protective Device | None |
| Temp. Rise | 55 deg C |
| Height | 3.38 in |
| Standards | CE, CSA, REACH, RoHS, UL Listed |
| Phase - Electrical | 1 |
| Depth | 2.8 in |
| Width | 3.78 in |
| Manufacturers Warranty Length | 18 mo |
| Enclosure Finish | Epoxy Resin Varnish |
| VA Rating - Transformer | 100 VA |
| Output Voltage - Transformer | 120V AC |
| Includes | Not Applicable |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Primary Connection | Screw clamp terminals |
| Weight | 1.7 kg |
| Insulation Max. Temp. | 130 °C |
| Enclosure Type | Open |
| Enclosure Rating | Not Rated |
| Secondary Connection | Screw clamp terminals |
| Package Quantity | 1 |
