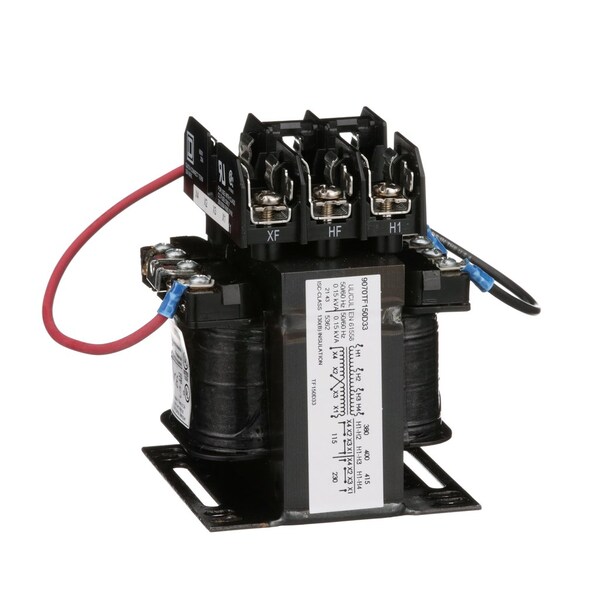

Control Transformer, 150 VA, Not Rated, 55°C, 115/230V AC, 380/400/415V
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 380/400/415V |
| Hz - Electrical | 50/60 Hz |
| Manufacturers Warranty Length | 1 yr |
| Height | 4-1/2 in |
| Temp. Rise | 55 deg C |
| Width | 3-3/4 in |
| Phase - Electrical | 1 |
| Output Voltage - Transformer | 115/230V AC |
| Fused | Yes |
| VA Rating - Transformer | 150 VA |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Depth | 3.59 in |
| Standards | UL listed file E61239; CSA file LR37055 guide 184-N-90 |
| Includes | Top Mounted Fuse Block |
| Material | Copper: winding |
| Secondary Connection | Screw clamp terminals |
| Enclosure Rating | Not Rated |
| Insulation Max. Temp. | 105 °C |
| Primary Connection | Screw clamp terminals |
| Enclosure Type | Open |
| Winding Material - Transformer | Copper |
| Fingersafe Cover Compatibility | FSC1 |
| Primary To Secondary Voltage | 380/400/415 V 115/230 V |
| Fuse Type | 10.3 x 38 mm CC top |
| Insulation Temperature | 221°F |
| Nema Degree of Protection | not rated (open device) |
| Range of Product | TF |
| Rated Power In Va | 150 VA UL, 150 VA CSA, 150 VA NOM, 150 VA CE |
| Package Quantity | 1 |
