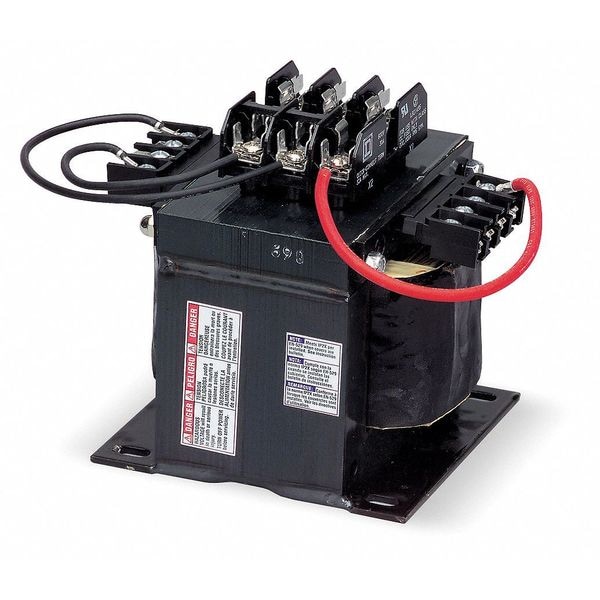

Control Transformer, 150 VA, Not Rated, 55°C, 120V AC, 208V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 208V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Enclosure Style - Transformer | Open |
| Protective Device | Primary and Secondary Fuse |
| Output Voltage - Transformer | 120V AC |
| Depth | 3-3/4 in |
| Manufacturers Warranty Length | 18 mo |
| Standards | CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239 |
| Enclosure Finish | Epoxy Resin Varnish |
| Fused | Yes |
| Temp. Rise | 55 deg C |
| VA Rating - Transformer | 150 VA |
| Phase - Electrical | 1 |
| Width | 3.59 in |
| Height | 4.55 in |
| Includes | Top Mounted Fuse Block |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Enclosure Type | Open |
| Enclosure Rating | Not Rated |
| Material | Copper: winding |
| Winding Material - Transformer | Copper |
| Secondary Connection | Screw clamp terminals |
| Insulation Max. Temp. | 105 °C |
| Primary Connection | Screw clamp terminals |
| Primary To Secondary Voltage | 208 V 120 V |
| Fingersafe Cover Compatibility | FSC1 |
| Fuse Type | 0.41 x 1.50 in CC top |
| Insulation Temperature | 221°F |
| Product Certifications | CSA file LR37055 guide 184-N-90; UL listed file E61239 |
| For Fuse Length | 1-1/2 in |
| For Fuse Class | CC |
| For Fuse Diameter | 7/16 in |
| Package Quantity | 1 |
