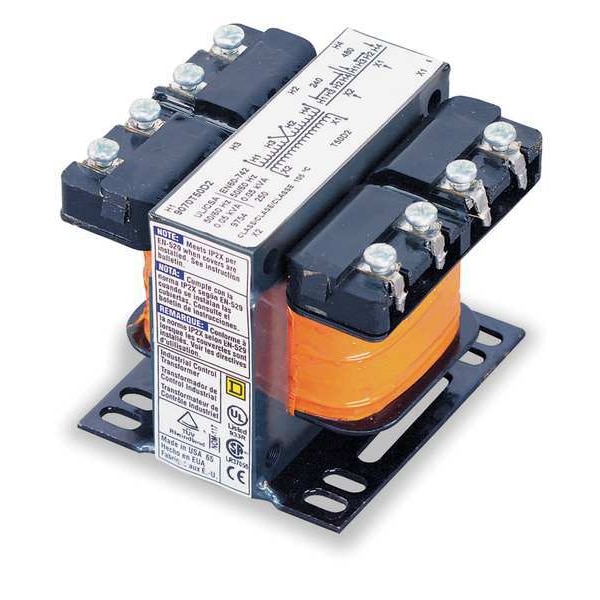

Control Transformer, 2 kVA, Not Rated, 115°C, 120V AC, 208/240/480V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 208/240/480V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Temp. Rise | 115 deg C |
| Manufacturers Warranty Length | 18 mo |
| Protective Device | None |
| Output Voltage - Transformer | 120V AC |
| Enclosure Finish | Epoxy Resin Varnish |
| Phase - Electrical | 1 |
| Width | 12 in |
| Enclosure Style - Transformer | Open |
| Standards | CSA, cUL Listed, REACH, RoHS, UL Listed |
| Depth | 14.8 in |
| Fused | No |
| VA Rating - Transformer | 2 kVA |
| Height | 11.8 in |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Includes | Not Applicable |
| Secondary Connection | Screw clamp terminals |
| Primary Connection | Screw clamp terminals |
| Enclosure Rating | Not Rated |
| Insulation Max. Temp. | 180 °C |
| Enclosure Type | Open |
| Package Quantity | 1 |
