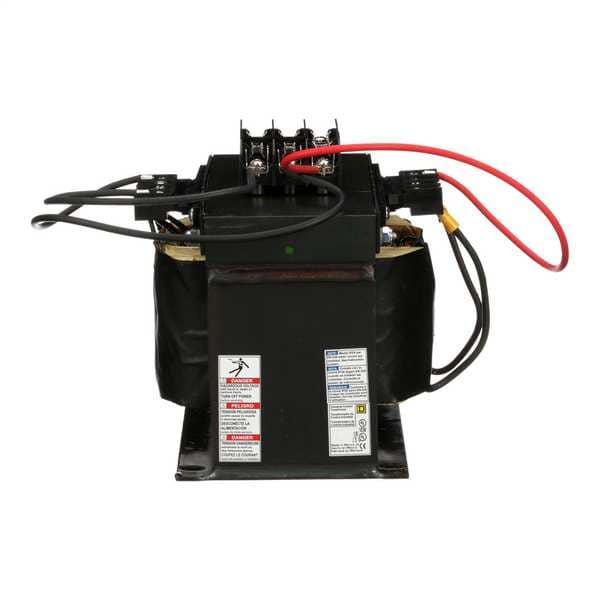

Control Transformer, 2 kVA, Not Rated, 115°C, 120V AC, 240/480V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/480V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Includes | Top Mounted Fuse Block |
| VA Rating - Transformer | 2 kVA |
| Manufacturers Warranty Length | 18 mo |
| Width | 7.04 in |
| Output Voltage - Transformer | 120V AC |
| Height | 7.46 in |
| Depth | 7.06 in |
| Enclosure Style - Transformer | Open |
| Phase - Electrical | 1 |
| Temp. Rise | 115 deg C |
| Enclosure Finish | Epoxy Resin Varnish |
| Standards | CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239 |
| Protective Device | Primary and Secondary Fuse |
| Fused | Yes |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Winding Material - Transformer | Copper |
| Enclosure Rating | Not Rated |
| Secondary Connection | Screw clamp terminals |
| Primary Connection | Screw clamp terminals |
| Material | Copper: winding |
| Insulation Max. Temp. | 180 °C |
| Enclosure Type | Open |
| Fuse Type | 0.41 x 1.50 in CC top |
| Primary To Secondary Voltage | 240 x 480 V 120 V; 230 x 460 V 115 V; 220 x 440 V 110 V |
| Product Certifications | CSA file LR37055 guide 184-N-90; UL listed file E61239 |
| Fingersafe Cover Compatibility | FSC2 |
| Insulation Temperature | 356°F |
| For Fuse Diameter | 7/16 in |
| For Fuse Length | 1-1/2 in |
| For Fuse Class | CC |
| Package Quantity | 1 |
