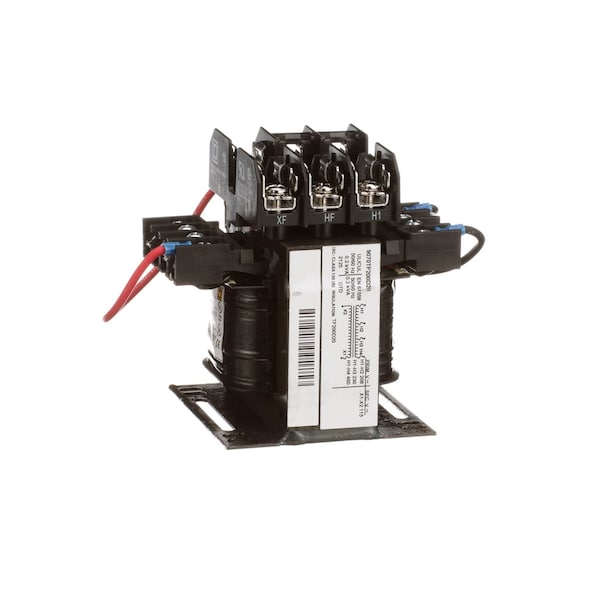

Control Transformer, 200 VA, Not Rated, 80°C, 115V AC, 208/230/460V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 208/230/460V AC |
| Hz - Electrical | 50/60 Hz |
| Manufacturers Warranty Length | 1 yr |
| Fused | Yes |
| Output Voltage - Transformer | 115V AC |
| VA Rating - Transformer | 200 VA |
| Phase - Electrical | 1 |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Standards | CSA file LR37055 guide 184-N-90; UL listed file E61239 |
| Temp. Rise | 80 deg C |
| Height | 4-1/2 in |
| Width | 3-3/4 in |
| Depth | 5.3 in |
| Includes | Top Mounted Fuse Block |
| Primary Connection | Screw clamp terminals |
| Winding Material - Transformer | Copper |
| Secondary Connection | Screw clamp terminals |
| Enclosure Rating | Not Rated |
| Enclosure Type | Open |
| Insulation Max. Temp. | 130 °C |
| Package Quantity | 1 |
