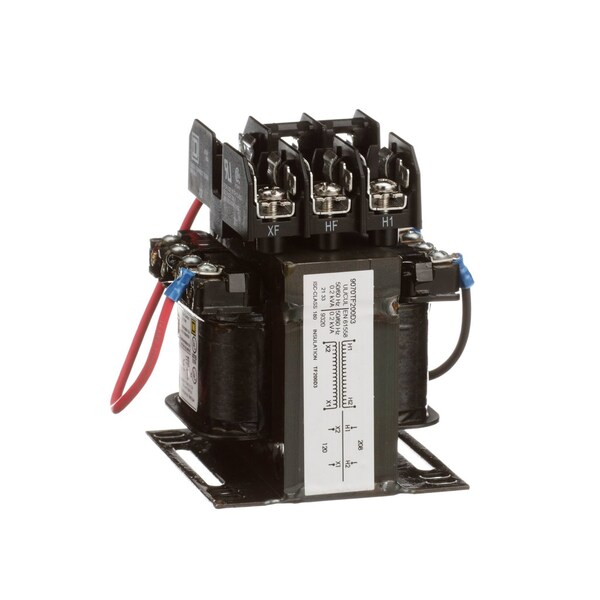

Control Transformer, 200 VA, Not Rated, 80°C, 120V AC, 208V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 208V AC |
| Hz - Electrical | 50/60 Hz |
| Manufacturers Warranty Length | 1 yr |
| Phase - Electrical | 1 |
| Width | 3-3/4 in |
| VA Rating - Transformer | 200 VA |
| Standards | CSA file LR37055 guide 184-N-90; UL listed file E61239 |
| Includes | Top Mounted Fuse Block |
| Depth | 3.59 in |
| Height | 4-1/2 in |
| Output Voltage - Transformer | 120V AC |
| Temp. Rise | 80 deg C |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Fused | Yes |
| Material | Copper: winding |
| Enclosure Type | Open |
| Winding Material - Transformer | Copper |
| Primary Connection | Screw clamp terminals |
| Enclosure Rating | Not Rated |
| Insulation Max. Temp. | 130 °C |
| Secondary Connection | Screw clamp terminals |
| Primary Voltage | 208 V 120 V |
| Nema Degree of Protection | not rated (open device) |
| Insulation Temperature | 130°C |
| Fuse Type | 0.41 x 1.50 in CC top |
| Product Compatibility | FSC1 |
| Range of Product | TF |
| Rated Power In Va | 200 VA UL, 200 VA CSA, 200 VA NOM, 200 VA CE |
| Package Quantity | 1 |
