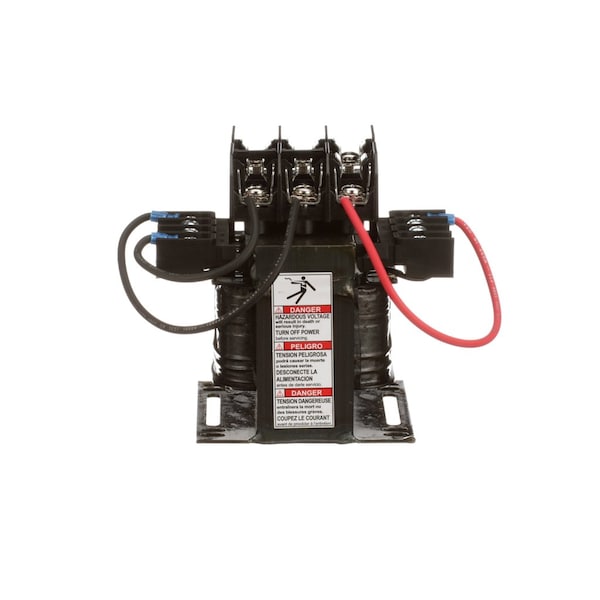

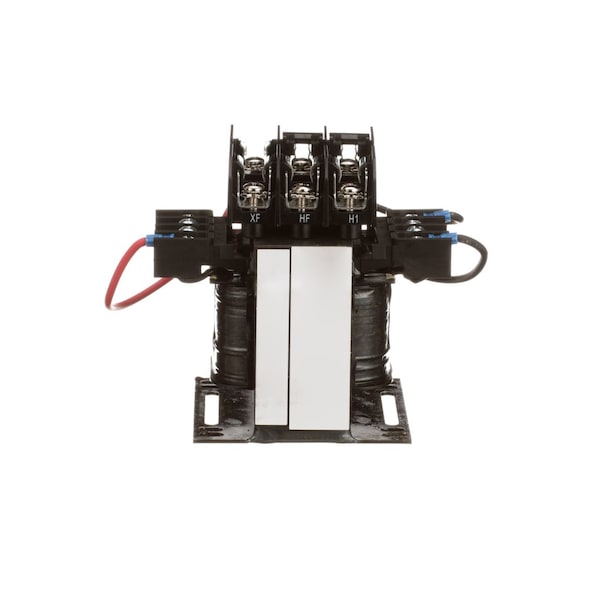

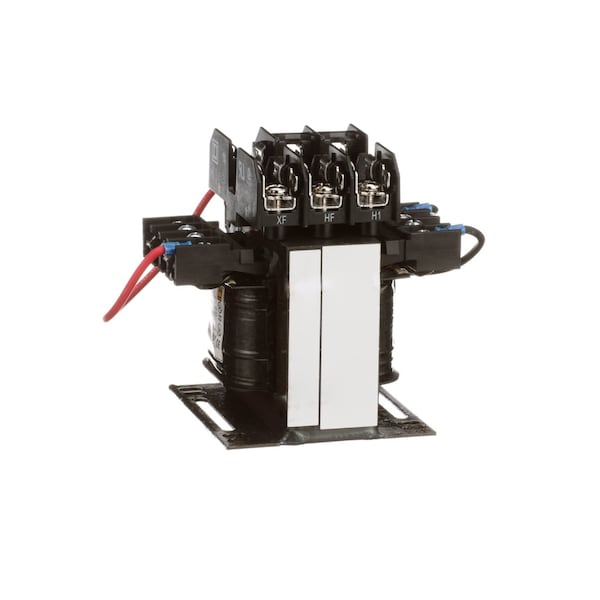

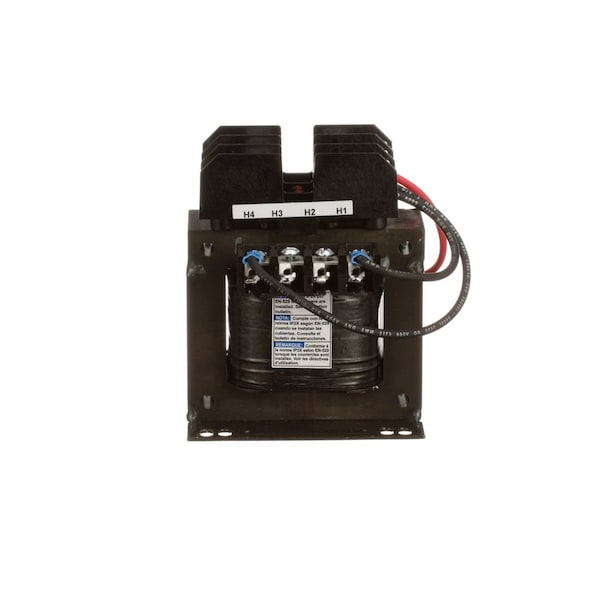

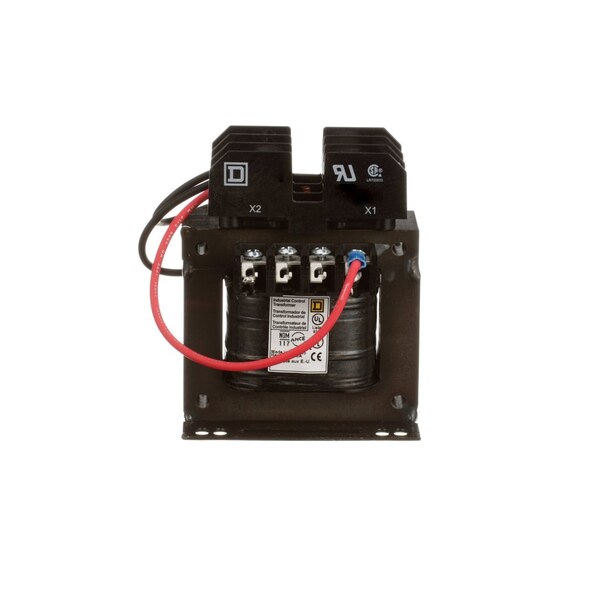

Control Transformer, 200 VA, Not Rated, 80°C, 12/24V AC, 120/240V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 120/240V AC |
| Hz - Electrical | 50/60 Hz |
| Manufacturers Warranty Length | 1 yr |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Fused | Yes |
| Includes | Top Mounted Fuse Block |
| Output Voltage - Transformer | 12/24V AC |
| Phase - Electrical | 1 |
| Depth | 3.59 in |
| VA Rating - Transformer | 200 VA |
| Temp. Rise | 80 deg C |
| Height | 4-1/2 in |
| Standards | UL Listed; CSA |
| Width | 3-3/4 in |
| Material | Copper: winding |
| Insulation Max. Temp. | 130 °C |
| Secondary Connection | Screw clamp terminals |
| Enclosure Type | Open |
| Primary Connection | Screw clamp terminals |
| Enclosure Rating | Not Rated |
| Winding Material - Transformer | Copper |
| Primary To Secondary Voltage | 600 V 120 V; 575 V 115 V; 550 V 110 V |
| Fingersafe Cover Compatibility | FSC1 |
| Product Certifications | CSA, UL Listed |
| Insulation Temperature | 266°F |
| Fuse Type | 10.3 x 38 mm CC top |
| Nema Degree of Protection | not rated (open device) |
| Rated Power In Va | 200 VA UL, 200 VA CSA, 200 VA NOM, 200 VA CE |
| Range of Product | TF |
| Primary Voltage | 600 V 120 V, 575 V 115 V, 550 V 110 V |
| Package Quantity | 1 |
