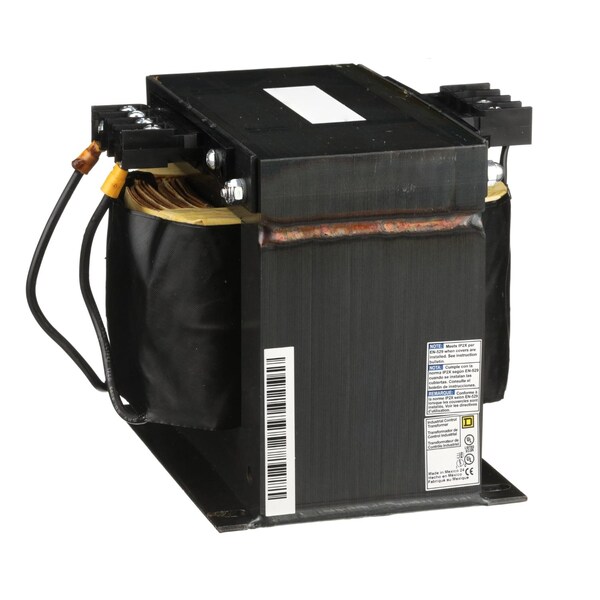

Control Transformer, 2000 VA, Not Rated, 115°C, 115/230V AC, 380/400/415V
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 380/400/415V |
| Manufacturers Warranty Length | 1 yr |
| Height | 6.17 in |
| Phase - Electrical | 1 |
| Output Voltage - Transformer | 115/230V AC |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Width | 7.06 in |
| Temp. Rise | 115 deg C |
| Standards | UL Listed; CSA |
| VA Rating - Transformer | 2,000 VA |
| Depth | 7.17 in |
| Primary Connection | Screw clamp terminals |
| Enclosure Type | Open |
| Enclosure Rating | Not Rated |
| Insulation Max. Temp. | 180 °C |
| Secondary Connection | Screw clamp terminals |
| Rated Power In Va | 2000 VA UL, 2000 VA CSA, 2000 VA NOM, 1500 VA CE |
| Nema Degree of Protection | not rated (open device) |
| Insulation Temperature | 180°C |
| Primary Voltage | 380/400/415 V 115/230 V |
| Range of Product | T |
| Pvc Free | Yes |
| Product Compatibility | FSC2 |
| Package Quantity | 1 |
