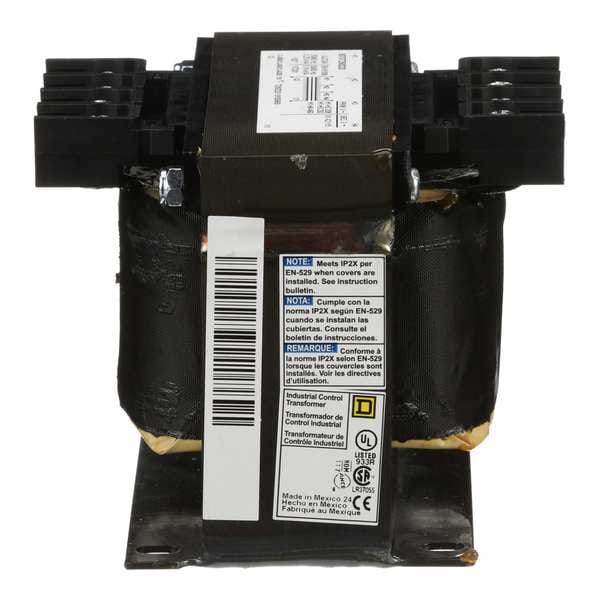

Control Transformer, 250 VA, Not Rated, 80°C, 120V AC, 208/240/480V AC
| CAD Available | Yes |
|---|---|
| Item | Control Transformer |
| Input Voltage - Transformer | 208/240/480V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Standards | CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239 |
| Depth | 4-1/2 in |
| Output Voltage - Transformer | 120V AC |
| Protective Device | None |
| Phase - Electrical | 1 |
| Width | 5.09 in |
| Enclosure Style - Transformer | Open |
| Manufacturers Warranty Length | 10 yr |
| Height | 4.43 in |
| VA Rating - Transformer | 250 VA |
| Enclosure Finish | Epoxy Resin Varnish |
| Temp. Rise | 80 deg C |
| Fused | No |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Includes | Not Applicable |
| Secondary Connection | Screw clamp terminals |
| Insulation Max. Temp. | 130 °C |
| Winding Material - Transformer | Copper |
| Material | Copper: winding |
| Primary Connection | Screw clamp terminals |
| Enclosure Type | Open |
| Enclosure Rating | Not Rated |
| Certifications | CSA file LR37055 guide 184-N-90; UL listed file E61239 |
| Primary To Secondary Voltage | 208/230/460 V 115 V |
| Fingersafe Cover Compatibility | FSC2 |
| Insulation Temperature | 266°F |
| Package Quantity | 1 |
