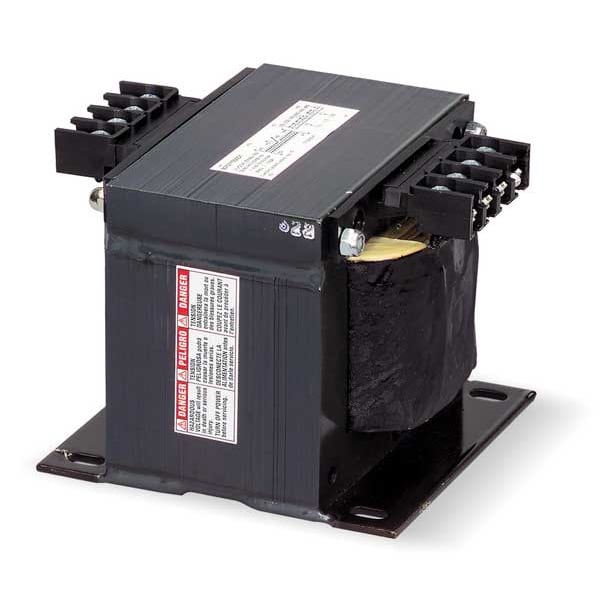

Control Transformer, 3 kVA, Not Rated, 115°C, 120V AC, 240/480V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/480V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Width | 6.86 in |
| Standards | CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239 |
| Enclosure Finish | Epoxy Resin Varnish |
| VA Rating - Transformer | 3 kVA |
| Temp. Rise | 115 deg C |
| Protective Device | None |
| Phase - Electrical | 1 |
| Depth | 9 in |
| Enclosure Style - Transformer | Open |
| Height | 8.46 in |
| Includes | 24 in Pre-Wired Primary and Secondary Leads |
| Manufacturers Warranty Length | 10 yr |
| Fused | No |
| Output Voltage - Transformer | 120V AC |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Insulation Max. Temp. | 180 °C |
| Primary Connection | Screw clamp terminals |
| Enclosure Type | Open |
| Winding Material - Transformer | Copper |
| Secondary Connection | Screw clamp terminals |
| Enclosure Rating | Not Rated |
| Package Quantity | 1 |
