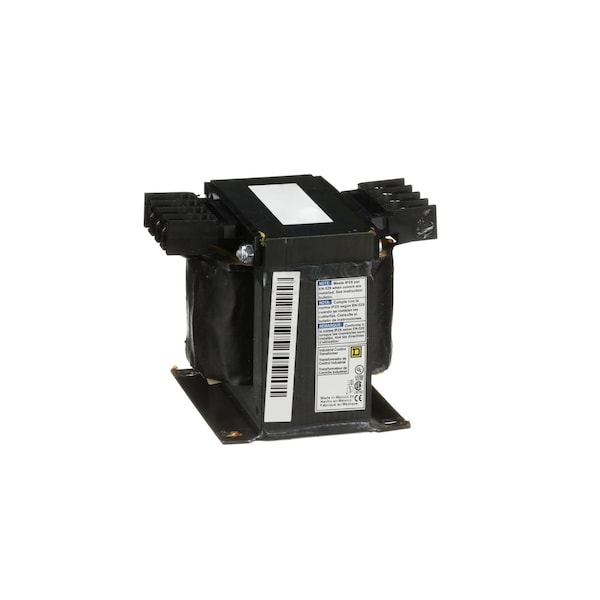

Control Transformer, 300 VA, 250 VA, Not Rated, 80°C, 120V, 600V
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 600V |
| Manufacturers Warranty Length | 1 yr |
| Phase - Electrical | 1 |
| Depth | 5.11 in |
| VA Rating - Transformer | 300 VA, 250 VA |
| Height | 3.84 in |
| Standards | CSA file LR37055 guide 184-N-90; UL listed file E61239 |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Temp. Rise | 80 deg C |
| Width | 4-1/2 in |
| Output Voltage - Transformer | 120V |
| Material | Copper: winding |
| Secondary Connection | Screw clamp terminals |
| Primary Connection | Screw clamp terminals |
| Insulation Max. Temp. | 130 °C |
| Enclosure Rating | Not Rated |
| Winding Material - Transformer | Copper |
| Enclosure Type | Open |
| Pvc Free | Yes |
| Insulation Temperature | 130°C |
| Primary Voltage | 600 V 120 V, 575 V 115 V, 550 V 110 V |
| Nema Degree of Protection | not rated (open device) |
| Rated Power In Va | 300 VA UL, 350 VA CSA, 350 VA NOM, 250 VA CE |
| Range of Product | T |
| Product Compatibility | FSC2 |
| Package Quantity | 1 |
