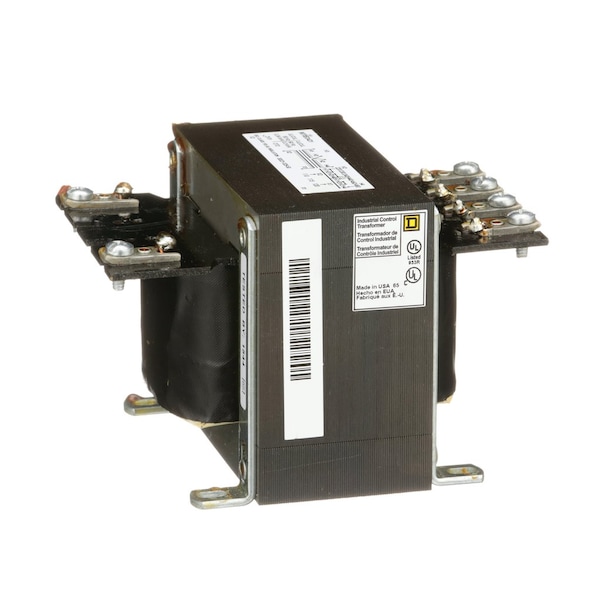

Control Transformer, 300 VA, Not Rated, 80°C, 110V, 240/480V AC, 220/440V AC, 230/460V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/480V AC, 220/440V AC, 230/460V AC |
| Manufacturers Warranty Length | 1 yr |
| Phase - Electrical | 1 |
| Depth | 95 mm |
| Temp. Rise | 80 deg C |
| VA Rating - Transformer | 300 VA |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Standards | CE; CSA; UL Listed |
| Output Voltage - Transformer | 110V |
| Height | 141 mm |
| Width | 114 mm |
| Weight | 7.8 kg |
| Enclosure Rating | Not Rated |
| Insulation Max. Temp. | 130 °C |
| Enclosure Type | Open |
| Primary Connection | Screw clamp terminals |
| Secondary Connection | Screw clamp terminals |
| Insulation Temperature | 266°F |
| Primary Voltage | 240 x 480 V; 230 x 460 V; 220 x 440 V |
| Pvc Free | Yes |
| Nema Degree of Protection | not rated (open device) |
| Range of Product | EO |
| Package Quantity | 1 |
