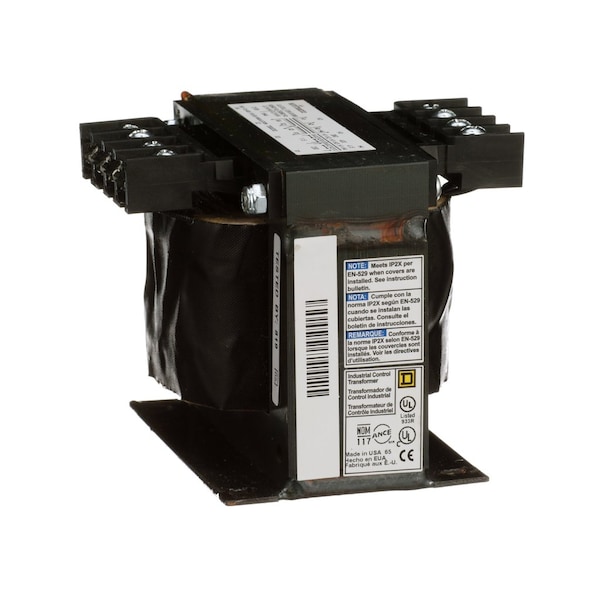

Control Transformer, 300 VA, Not Rated, 80°C, 115/230V AC, 380/400/415V
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 380/400/415V |
| Manufacturers Warranty Length | 1 yr |
| VA Rating - Transformer | 300 VA |
| Height | 3.84 in |
| Phase - Electrical | 1 |
| Output Voltage - Transformer | 115/230V AC |
| Standards | UL listed file E61239; CSA file LR37055 guide 184-N-90 |
| Width | 4-1/2 in |
| Temp. Rise | 80 deg C |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Depth | 4.74 in |
| Material | Copper: winding |
| Enclosure Type | Open |
| Primary Connection | Screw clamp terminals |
| Insulation Max. Temp. | 130 °C |
| Secondary Connection | Screw clamp terminals |
| Winding Material - Transformer | Copper |
| Enclosure Rating | Not Rated |
| Product Compatibility | FSC2 |
| Primary Voltage | 380/400/415 V 115/230 V |
| Rated Power In Va | 300 VA UL, 300 VA CSA, 300 VA NOM, 200 VA CE |
| Insulation Temperature | 130°C |
| Range of Product | T |
| Pvc Free | Yes |
| Nema Degree of Protection | not rated (open device) |
| Package Quantity | 1 |
