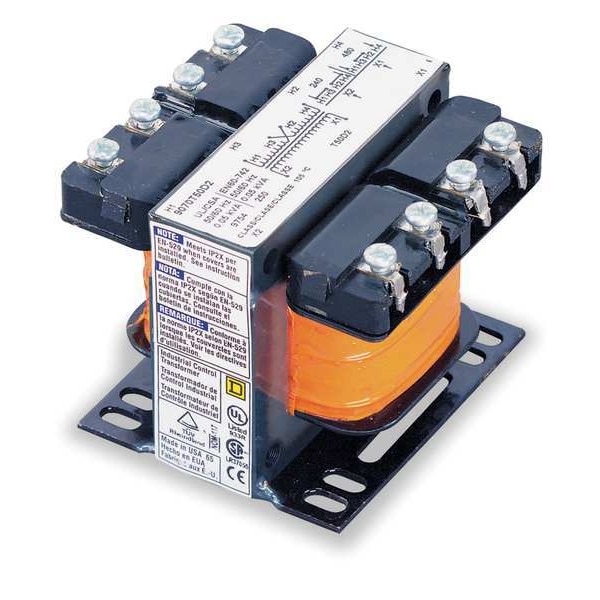

Control Transformer, 300 VA, Not Rated, 80°C, 24V AC, 120/240V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 120/240V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Height | 6.4 in |
| Manufacturers Warranty Length | 10 yr |
| Output Voltage - Transformer | 24V AC |
| Temp. Rise | 80 deg C |
| Phase - Electrical | 1 |
| Standards | CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239 |
| Depth | 7.8 in |
| Width | 6.7 in |
| Fused | No |
| Enclosure Style - Transformer | Open |
| Enclosure Finish | Epoxy Resin Varnish |
| VA Rating - Transformer | 300 VA |
| Protective Device | None |
| Includes | Not Applicable |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Primary Connection | Screw clamp terminals |
| Secondary Connection | Screw clamp terminals |
| Winding Material - Transformer | Copper |
| Enclosure Rating | Not Rated |
| Insulation Max. Temp. | 130 °C |
| Enclosure Type | Open |
| Package Quantity | 1 |
