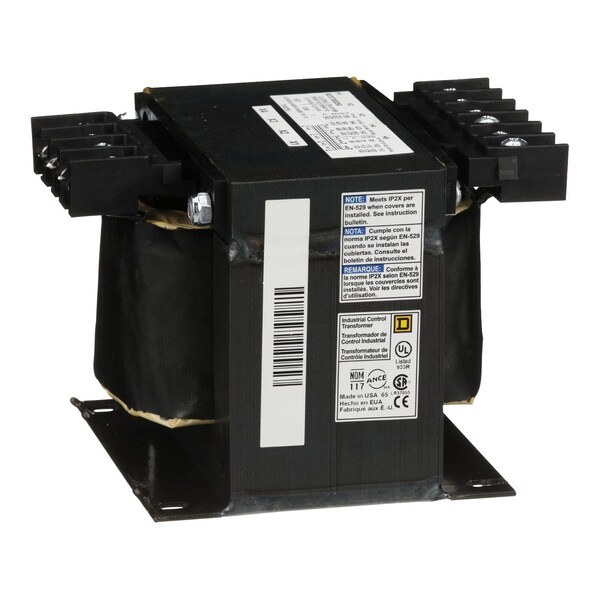

Control Transformer, 300 VA, Not Rated, 80°C, 99/120/130V, 240/416/480/600V
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/416/480/600V |
| Manufacturers Warranty Length | 1 yr |
| Output Voltage - Transformer | 99/120/130V |
| Height | 3.84 in |
| VA Rating - Transformer | 300 VA |
| Width | 4-1/2 in |
| Depth | 5.49 in |
| Standards | UL listed file E61239; CSA file LR37055 guide 184-N-90 |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Phase - Electrical | 1 |
| Temp. Rise | 80 deg C |
| Material | Copper: winding |
| Enclosure Type | Open |
| Insulation Max. Temp. | 130 °C |
| Enclosure Rating | Not Rated |
| Primary Connection | Screw clamp terminals |
| Winding Material - Transformer | Copper |
| Secondary Connection | Screw clamp terminals |
| Nema Degree of Protection | not rated (open device) |
| Range of Product | T |
| Product Compatibility | FSC23 |
| Insulation Temperature | 130°C |
| Primary Voltage | 240/416/480/600 V 99/120/130 V, 230/400/460/575 V 95/115/125 V, 220/380/440/550 V 90/110/120 V, 208/360/416/520 V 85/100/110 V |
| Pvc Free | Yes |
| Rated Power In Va | 300 VA UL, 300 VA CSA, 300 VA NOM, 200 VA CE |
| Package Quantity | 1 |
