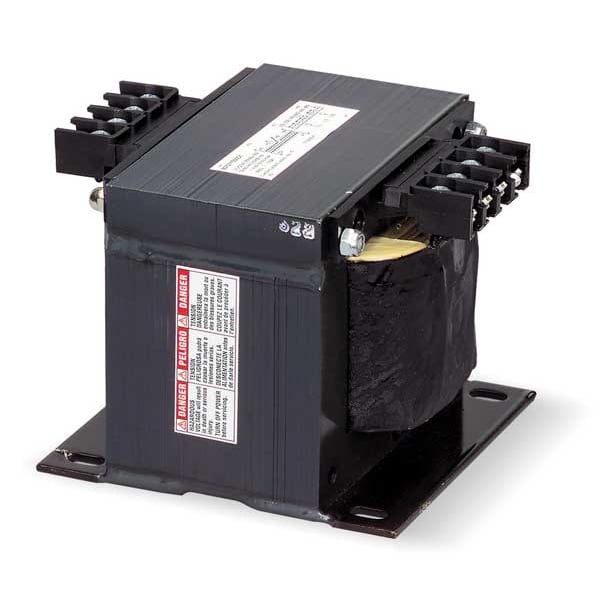

Control Transformer, 350 VA, Not Rated, 80°C, 120V AC, 240/480V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/480V AC |
| Output Voltage | 110V AC, 115V AC, 120V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Width | 5 in |
| Output Voltage - Transformer | 120V AC |
| Enclosure Style - Transformer | Open |
| VA Rating - Transformer | 350 VA |
| Input Voltage | 220V/440V, 230V/460V, 240V/480V |
| Protective Device | None |
| Fused | No |
| Manufacturers Warranty Length | 10 yr |
| Temp. Rise | 80 deg C |
| Standards | CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239 |
| Height | 3.8 in |
| Depth | 4-1/2 in |
| Phase - Electrical | 1 |
| Enclosure Finish | Epoxy Resin Varnish |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Includes | 24 in Pre-Wired Primary and Secondary Leads |
| Secondary Connection | Screw clamp terminals |
| Insulation Max. Temp. | 130 °C |
| Material | Copper: winding |
| Winding Material - Transformer | Copper |
| Enclosure Type | Open |
| Enclosure Rating | Not Rated |
| Primary Connection | Screw clamp terminals |
| Insulation Temperature | 266°F |
| Fingersafe Cover Compatibility | FSC2 |
| Certifications | CSA file LR37055 guide 184-N-90; UL listed file E61239 |
| Primary To Secondary Voltage | 240 x 480 V 120 V; 230 x 460 V 115 V; 220 x 440 V 110 V |
| Package Quantity | 1 |
