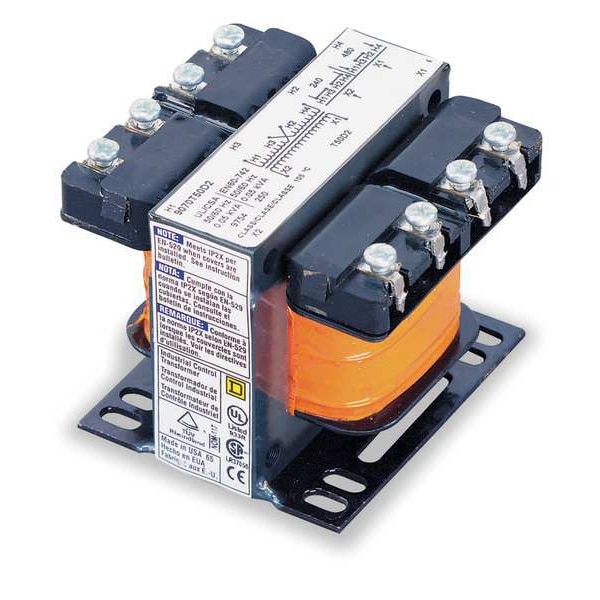

Control Transformer, 50 VA, Not Rated, 55°C, 120V AC, 208V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 208V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Temp. Rise | 55 deg C |
| Standards | CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239 |
| Fused | No |
| Width | 3 in |
| Enclosure Style - Transformer | Open |
| Phase - Electrical | 1 |
| Manufacturers Warranty Length | 10 yr |
| Output Voltage - Transformer | 120V AC |
| Protective Device | None |
| Height | 2.58 in |
| Enclosure Finish | Epoxy Resin Varnish |
| VA Rating - Transformer | 50 VA |
| Depth | 3 in |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Includes | 24 in Pre-Wired Primary and Secondary Leads |
| Insulation Max. Temp. | 105 °C |
| Material | Copper: winding |
| Enclosure Rating | Not Rated |
| Primary Connection | Screw clamp terminals |
| Secondary Connection | Screw clamp terminals |
| Winding Material - Transformer | Copper |
| Enclosure Type | Open |
| Fingersafe Cover Compatibility | FSC1 |
| Insulation Temperature | 221°F |
| Certifications | UL listed file E61239; CSA file LR37055 guide 184-N-90 |
| Primary To Secondary Voltage | 208 V 120 V |
| Package Quantity | 1 |
