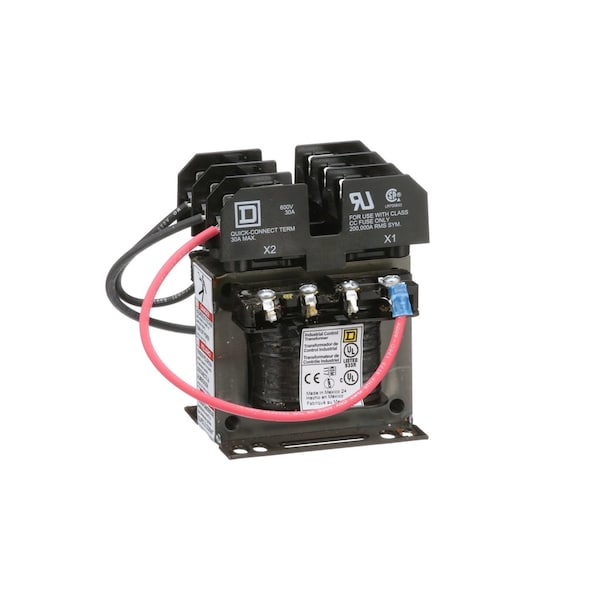

Control Transformer, 50 VA, Not Rated, 55°C, 120V AC, 600V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 600V AC |
| Hz - Electrical | 50/60 Hz |
| Manufacturers Warranty Length | 1 yr |
| Standards | UL listed file E61239; CSA file LR37055 guide 184-N-90 |
| Width | 3 in |
| VA Rating - Transformer | 50 VA |
| Fused | Yes |
| Phase - Electrical | 1 |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Height | 4 in |
| Depth | 3.09 in |
| Includes | Top Mounted Fuse Block |
| Temp. Rise | 55 deg C |
| Output Voltage - Transformer | 120V AC |
| Secondary Connection | Screw clamp terminals |
| Insulation Max. Temp. | 105 °C |
| Enclosure Rating | Not Rated |
| Winding Material - Transformer | Copper |
| Enclosure Type | Open |
| Primary Connection | Screw clamp terminals |
| Package Quantity | 1 |
