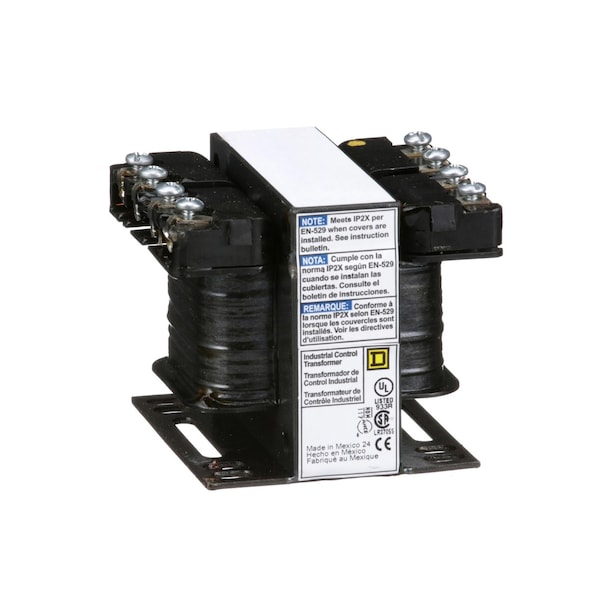

Control Transformer, 50 VA, Not Rated, 55°C, 12/24V, 120/240V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 120/240V AC |
| Manufacturers Warranty Length | 1 yr |
| Output Voltage - Transformer | 12/24V |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Phase - Electrical | 1 |
| Standards | UL Listed; CSA |
| VA Rating - Transformer | 50 VA |
| Temp. Rise | 55 deg C |
| Enclosure Rating | Not Rated |
| Insulation Max. Temp. | 105 °C |
| Secondary Connection | Screw clamp terminals |
| Primary Connection | Screw clamp terminals |
| Enclosure Type | Open |
| Insulation Temperature | 105°C |
| Rated Power In Va | 50 VA UL, 50 VA CSA, 50 VA NOM, 50 VA CE |
| Product Compatibility | FSC1 |
| Primary Voltage | 120 x 240 V 12/24 V |
| Pvc Free | Yes |
| Range of Product | T |
| Nema Degree of Protection | not rated (open device) |
| Package Quantity | 1 |
