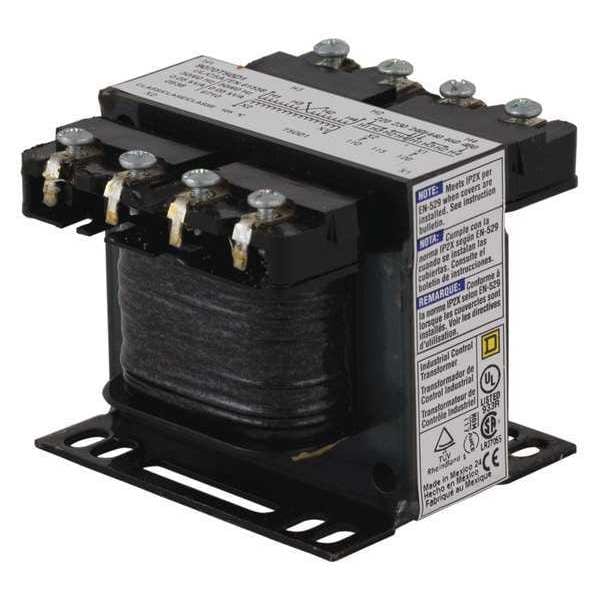

Control Transformer, 50 VA, Not Rated, 55°C, 240V, 240/480V
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/480V |
| Hz - Electrical | 50/60 Hz |
| Manufacturers Warranty Length | 1 yr |
| Standards | CSA file LR37055 guide 184-N-90; UL listed file E61239 |
| Height | 2.58 in |
| Width | 3 in |
| Depth | 3.09 in |
| Phase - Electrical | 1 |
| Output Voltage - Transformer | 240V |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Temp. Rise | 55 deg C |
| VA Rating - Transformer | 50 VA |
| Primary Connection | Screw clamp terminals |
| Insulation Max. Temp. | 105 °C |
| Secondary Connection | Screw clamp terminals |
| Enclosure Rating | Not Rated |
| Enclosure Type | Open |
| Winding Material - Transformer | Copper |
| Package Quantity | 1 |
