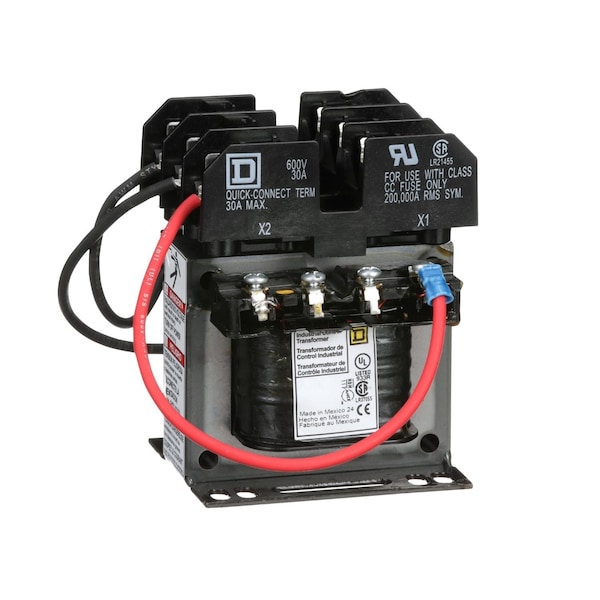

Control Transformer, 50 VA, Not Rated, 55°C, 24V AC, 120/240V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 120/240V AC |
| Hz - Electrical | 50/60 Hz |
| Secondary Connection | Screw clamp terminals |
| Enclosure Rating | Not Rated |
| Height | 3.34 in |
| Primary Connection | Screw clamp terminals |
| Includes | Top Mounted Fuse Block |
| Standards | CSA file LR37055 guide 184-N-90; UL listed file E61239 |
| Temp. Rise | 55 deg C |
| Fused | Yes |
| Phase - Electrical | 1 |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Output Voltage - Transformer | 24V AC |
| VA Rating - Transformer | 50 VA |
| Width | 3.38 in |
| Enclosure Type | Open |
| Depth | 4.18 in |
| Insulation Max. Temp. | 105 °C |
| Fuse Type | 10.3 x 38 mm CC top |
| Insulation Temperature | 105°C |
| Primary Voltage | 120 x 240 V 24 V |
| Rated Power In Va | 50 VA UL, 50 VA CSA, 50 VA NOM, 50 VA CE |
| Range of Product | TF |
| Nema Degree of Protection | not rated (open device) |
| Package Quantity | 1 |
