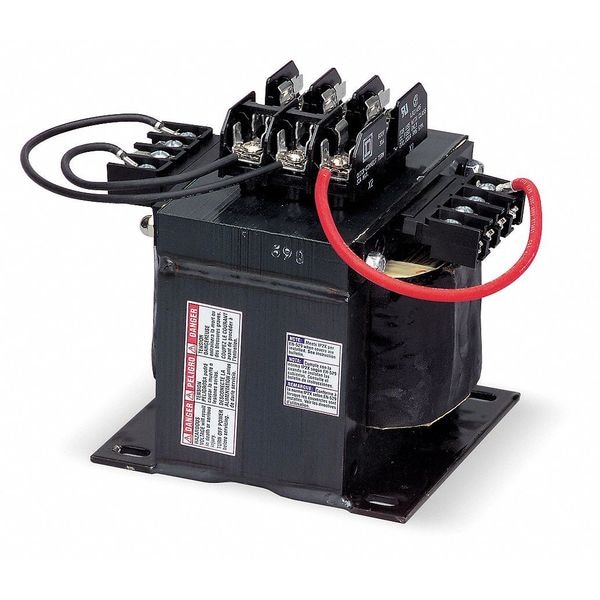

Control Transformer, 50 VA, Not Rated, 55°C, 24V AC, 240/480V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/480V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Includes | Top Mounted Fuse Block |
| Output Voltage - Transformer | 24V AC |
| Fused | Yes |
| Depth | 3 in |
| Manufacturers Warranty Length | 18 mo |
| Temp. Rise | 55 deg C |
| Enclosure Finish | Epoxy Resin Varnish |
| Standards | CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239 |
| Phase - Electrical | 1 |
| VA Rating - Transformer | 50 VA |
| Enclosure Style - Transformer | Open |
| Width | 3.09 in |
| Height | 4 in |
| Protective Device | Primary and Secondary Fuse |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Insulation Max. Temp. | 105 °C |
| Enclosure Type | Open |
| Enclosure Rating | Not Rated |
| Secondary Connection | Screw clamp terminals |
| Primary Connection | Screw clamp terminals |
| Fuse Type | 10.3 x 38 mm CC top |
| Primary To Secondary Voltage | 240 x 480 V 24 V |
| Insulation Temperature | 221°F |
| Product Certifications | CSA file LR37055 guide 184-N-90; UL listed file E61239 |
| For Fuse Class | CC |
| For Fuse Length | 38 mm |
| For Fuse Diameter | 10.3125 mm |
| Package Quantity | 1 |
