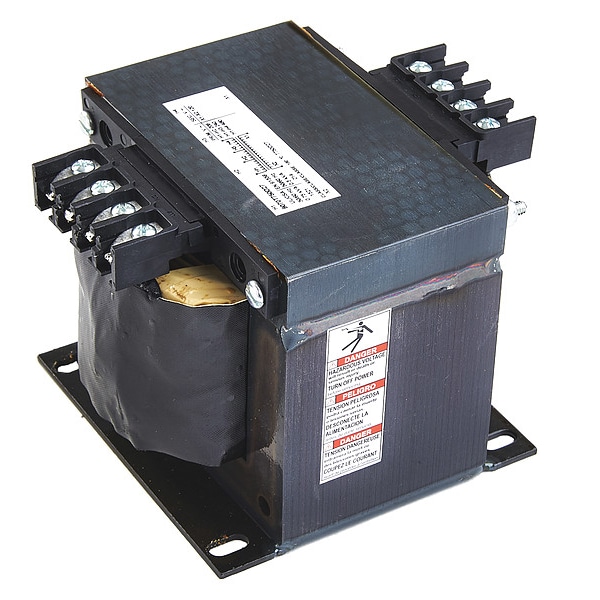

Control Transformer, 500 VA, Not Rated, 115°C, 24/120V, 240/480V
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/480V |
| Manufacturers Warranty Length | 1 yr |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Phase - Electrical | 1 |
| Height | 3.84 in |
| VA Rating - Transformer | 500 VA |
| Depth | 5.49 in |
| Temp. Rise | 115 deg C |
| Output Voltage - Transformer | 24/120V |
| Width | 4-1/2 in |
| Standards | UL listed file E61239; CSA file LR37055 guide 184-N-90 |
| Insulation Max. Temp. | 180 °C |
| Enclosure Rating | Not Rated |
| Winding Material - Transformer | Copper |
| Primary Connection | Screw clamp terminals |
| Secondary Connection | Screw clamp terminals |
| Enclosure Type | Open |
| Material | Copper: winding |
| Primary To Secondary Voltage | 240 x 480 V 25/120 V; 240 x 480 V 24/115 V; 240 x 480 V 23/110 V |
| Insulation Temperature | 356°F |
| Fingersafe Cover Compatibility | FSC2 |
| Primary Voltage | 240 x 480 V 25/120 V, 240 x 480 V 24/115 V, 240 x 480 V 23/110 V |
| Pvc Free | Yes |
| Nema Degree of Protection | not rated (open device) |
| Rated Power In Va | 500 VA UL, 500 VA CSA, 500 VA NOM, 300 VA CE |
| Range of Product | T |
| Package Quantity | 1 |
